mPower MUNI MP420
4 In 1 Compact Multi-Gas Detectors
OVERVIEW
The MUNI MP420 is a compact and lightweight 4-gas detector for
worker safety in hazardous locations with four standard sensors for
oxygen (O2), combustibles (LEL), carbon monoxide (CO), and hydrogen
sulfide (H2S). Alternative sensors include low power infrared
methane (CH4), sulfur dioxide (SO2) and hydrogen cyanide (HCN). The
detector is housed in a rugged enclosure with no moving parts. Its
battery power provides 24 hours of operation for a standard 4-gas
detector and extended run time when using a low power infrared
sensor. Simple 2-button operation provides ultimate ease of use and
significantly reduces user training time. To save users money,
sensors are not interchangeable and must be specified at the time
of purchase.
FEATURES
• Various models for basic confined space entry (CSE) compliance,
plus SO2 and HCN sensors.
• Diffusion sampling
• Compact, robust, lightweight & wearable
• Auto backlit LCD with large numeric digits
• Easy-to-navigate menu with two buttons
• Up to 4 replaceable sensors out of 8 choices;
non-interchangeability reduces monitor cost
• Battery operation 24 hours with pellistor LEL sensor or extended
time with low-power infrared LEL sensor
• Two-color status indicators on regular self-diagnosis of sensor,
battery and circuitry
• Wide angle LED alarms
• 1000 Events log
• Combination charge adapter / micro-USB PC interface cable
• IP-68 weather ingress rating
• Optional BLE wireless connectivity
• Optional MuniDock for convenient bump & calibration
• Durable double-shot outer case
PRODUCT PARAMETER
Size | 4.33 x 2.36 x 1.10 in (110 x 60 x 28 mm) |
Weight | 8 oz (230 g) |
Sensor | Standard LEL (Pellistor), O2-LF (Pb-free), CO and H2S |
Alternatives CH4 (NDIR), O2 (Galvanic), SO2 and HCN |
Replaceable but not interchangeable |
Battery | Rechargeable Li-ion pack: ≥ 24 hours (with Pellistor) or extended
run time (with NDIR) |
Direct Readout | Real-time reading of gas concentration |
Visual compliance indicator |
Battery status |
STEL, TWA, peak and minimum values |
Display | Segment LCD, 1.75 x 1.25 in (44 x 32 mm) with LED backlight for
enhanced readability |
Keypad | 2 operation keys |

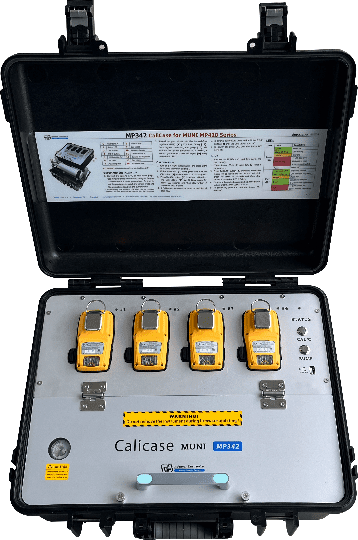

Calibration | Manual calibration. MuniDock or Calicase allows automatic bump test
and calibration |
Alarm | Wireless remote alarm notification, audible (95dB@30cm), vibration,
visual (flashing bright red LEDs), and on-screen indication of
alarm conditions Man Down Alarm with pre-alarm and real-time remote
wireless notification |
Datalogging | 1000 Events (Software allows printing of Calibration Certificate) |
Charging and Communication | Charging with AC adapter or cable to PC |
PC comm for data download, monitor setup & firmware upgrades via
cable, optional BLE (Bluetooth Low Energy), or MuniDock |
Temperature | -4° to 122°F (-20°C to 50°C) |
Humidity | 0% to 95% relative humidity (non-condensing) |
IP Rating | IP-68 |
Safety Certifications | UL/cUL: Class I, Div 1, Group A, B, C, D |
T4, -20°C ≤ Tamb ≤ +50°C |
EMC/RFI |
EMC directive: 2004/108/EC |
ATEX II 1G Ex da ia IIC T4 Ga |
Warranty | 2-year including sensors |
3-years with NDIR-LEL/O2-LF/H2S/CO |
| Sensor | Range | Resolution | Response Time (t90) |
|---|
1. Combustible (LEL) | | 1%LEL | |
2. Oxygen (O2)
| 0-30%Vol | 0.1%Vol | 15 sec |
3. Hydrogen Sulfide (H2S) or Hydrogen Cyanide (HCN) | 0-100ppm 0-50ppm | 0.1ppm 0.1ppm | 15 sec45 sec |
4. Carbon Monoxide (CO) or Sulfur Dioxide (SO2) | 0-1000ppm 0-20ppm | 1ppm 0.1ppm | 15 sec30 sec |
* Sensors are replaceable but NOT interchangeable (including
lead-free and galvanic oxygen). Sensor configuration must be
decided at time of purchase because each configuration has a unique
circuit board.
APPLICATION SCENES
* Oil and gas
* Fire ground “Toxic Twins” detection
* Environmental
* Chemical
* Pharmaceutical
* Telecommunications
* Multi-gas leak detection in industries such as chemical, food and
beverage, oil and gas (downstream)
