150m Explosion Proof Rmld Leak Detection Zetron P20

Ask Lasest Price
Brand Name :	Zetron
Model Number :	P20
Certification :	CE
Price :	USD 2995/set- 2999/set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 set/month
Delivery Time :	in stock

Add to Cart

Product Details
Company Profile

150m Explosion Proof Rmld Leak Detection Zetron P20

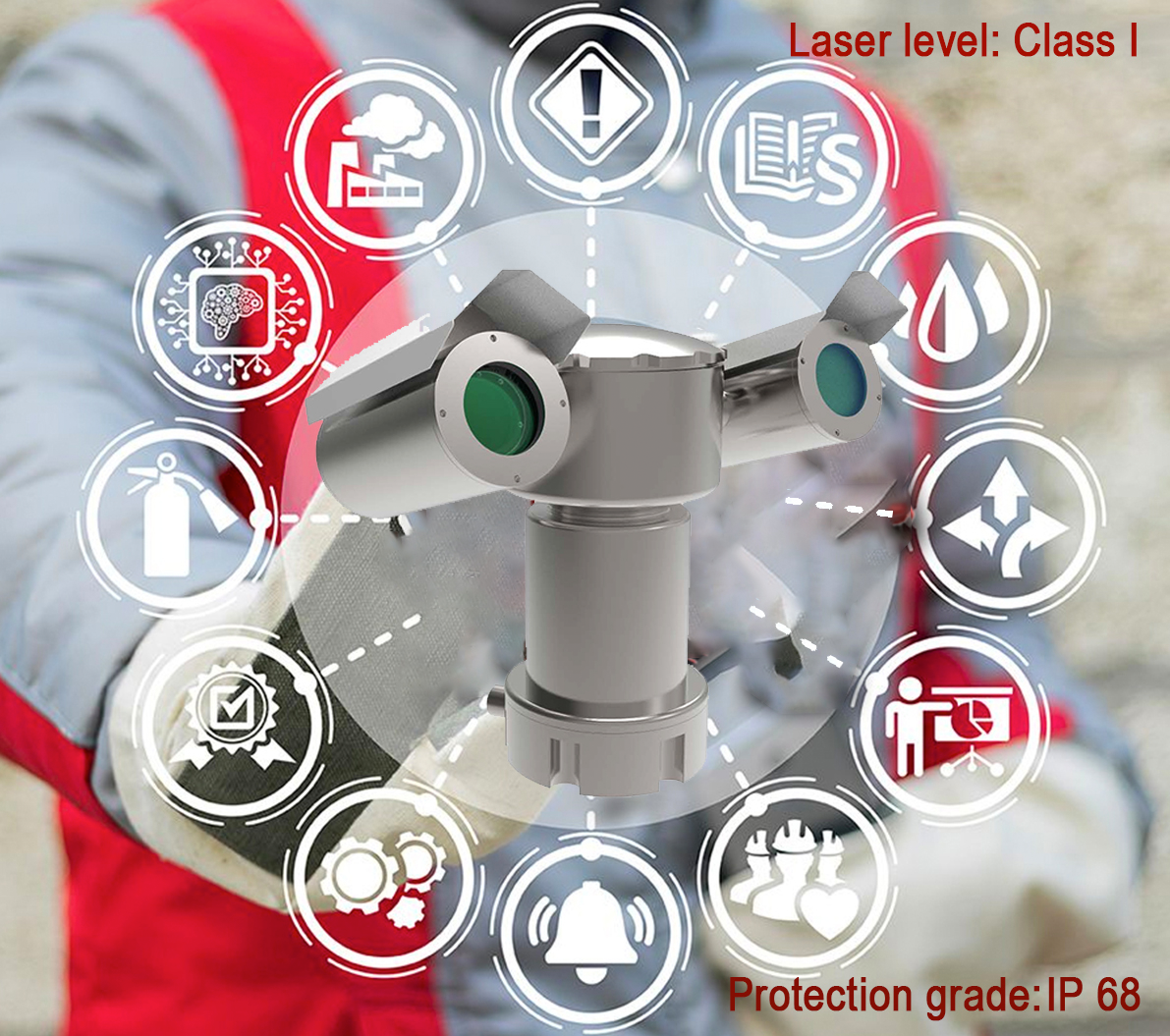

Zetron P20 Laser Methane Leakage detector Scanning monitoring system

OVERVIEW

P20 has a maximum detection distance of 150m.
With 360° PTZ device, the detection area reaches to 70,000 square meters which realize a large-scale and uninterrupted leakage detection.
With advanced preset point or curve cruise functions, P20 can easily get the detection laser close to the inspection targets such as valves and pipelines.
P20 has the response time of 0.05s.
The detection performance can still be guaranteed under the condition of high linear velocity of "scanning" the target at.
The patented PTZ control technology greatly enhances the PTZ operation accuracy which ensures the deviation <0.1°
Benefit from networked data connection, multiple monitor can be managed in the same LAN.
Redundant, localized inspection and alarm strategy, the inspection will not be interrupted, even if the data network is out of work.

FEATRURES

・Explosion-proof grade update to Ex ib IlB T4
・Highly reliable gimbal with longer life time
・Introduce closed-oop control logic to greatly improve control accuracy
・Power consumption saved to 20W
・4 times smaller in size
・6 times lighter in weight
・Plug and operate with easier configuration
・New optional accessories: 5G communicationunit and photovoltaic / solar power supply

SPECIFICATION

Model	P20	Detection Targets	Methane(CH4)
Measuring Principle	TDLAS	Testing Laser Rating	Class I
Concentration Range	0~50,000 ppm ·m	Directing Laser Rating	Class IIIR
Response Time	0.05s	Explosion-proof Grade	Ex ib IIB T4 Gb
Max Detection Distance	150m	Protection Level	IP68
Data Interface	RS-485(ModBus TCP/ RTU)/ Ethernet	Gimbal Range	Horizontal 360°& Vertical +/-90°
Operating Temperature	-40℃~+70℃	Operating Humidity	<90%RH
Power Supply	220VAC	Power Consumption	20W
Weight	6 kg	Size	140×140 × 265 mm
Device Shell Material	Stainless Steel	Optional Accessories	5G Unit / Solar Power Supply

APPLICATION

Versatile and practical, this device is ideal for short-term testing of air quality in buildings, workplaces and on the roadside. With a very fast response time, it delivers accurate readings and can locate sources of airborne dust and fumes even at very low concentrations.
