Zetron Particle Count Oil Analysis OPC-P2 In Aviation / Spaceflight

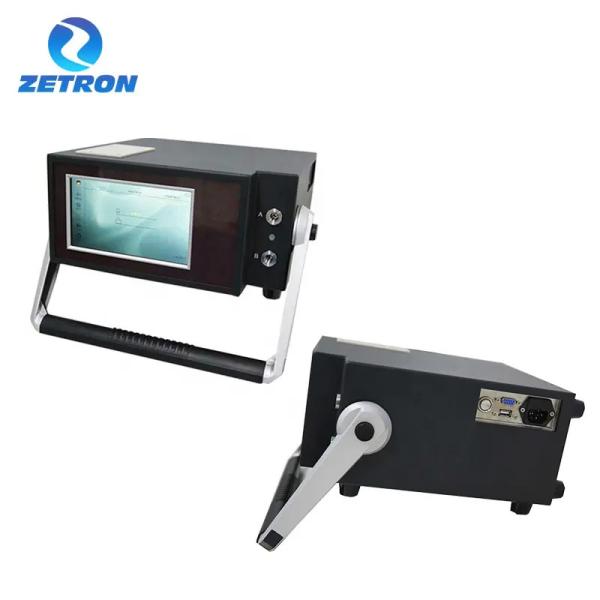

OPC-P2 Portable Oil Particle Counter

OVERVIEW

OPC-P2 Portable Oil Particle Counter adopts laser extinction technology, is designed to measure the size and quantity of particles in oil liquid. It is suitable for testing the contamination level of solid particles in hydraulic oil, lubricating oil, fireproof oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or battery.

FEATURES

* Built-in multiple calibration curves, compatible with all common domestic and international standards for calibration.

* Built-in NAS1638, GJB420A, GJB420B, ISO4406, SAE4059DPC, SAE4059CPC, GB/T14039, GOST17216, QC/T29104, JB/T9737, DL/T432, SAE749D, HH005-2018 and other common standards.

* One test can give the data results under all the built-in standards, support customized standard test, and can set the required standards according to customer needs;

* 1000 particle size channels can be set to facilitate particle size analysis

APPLICATION SCENES

All the cases require the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

PRODUCT PARAMETERS

Light source	Semiconductor laser
Particle size range	0.8-600μm (depending on different sensors)
Sensitivity	0.1μm
Customized detection channels	8~64 channels optional, arbitrary setting of particle size size
Sampling volume	0.2-1000ml, interval 0.1mL
Sampling accuracy	better than ± 1%
Sampling speed	5-80mL/min
Cleaning speed	5-80mL/min
Cleaning volume	can be set between 0~90mL
Counting accuracy	＜±5%
Resolution	≤ 10%
Repeatability	RSD＜2%
Limit overlap error	12000-40000 grains/mL
Offline detection viscosity	≤100cSt (viscosity is too large optional air pressure chamber)
Pressure range	low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)
On-line detection interval time	arbitrary settings
Testing sample temperature	0 ℃ ~ 80 ℃
Working temperature	-20℃~60
Storage temperature	-30℃~80
Screen size	7 inch
Power supply	AC100-240V, 50/60Hz
Battery capacity	5200mAh
Battery running time	6-8 hours
Overall Dimension	310×305×135mm
Instrument weight	7.5kg
