PID Zetron MIC300 Harmful Gas Detector Online ip66

Ask Lasest Price
Brand Name :	zetron
Model Number :	MIC-300
Certification :	CE, Atex, RohS, ISO
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 set/month
Delivery Time :	14 work days

Add to Cart

Product Details
Company Profile

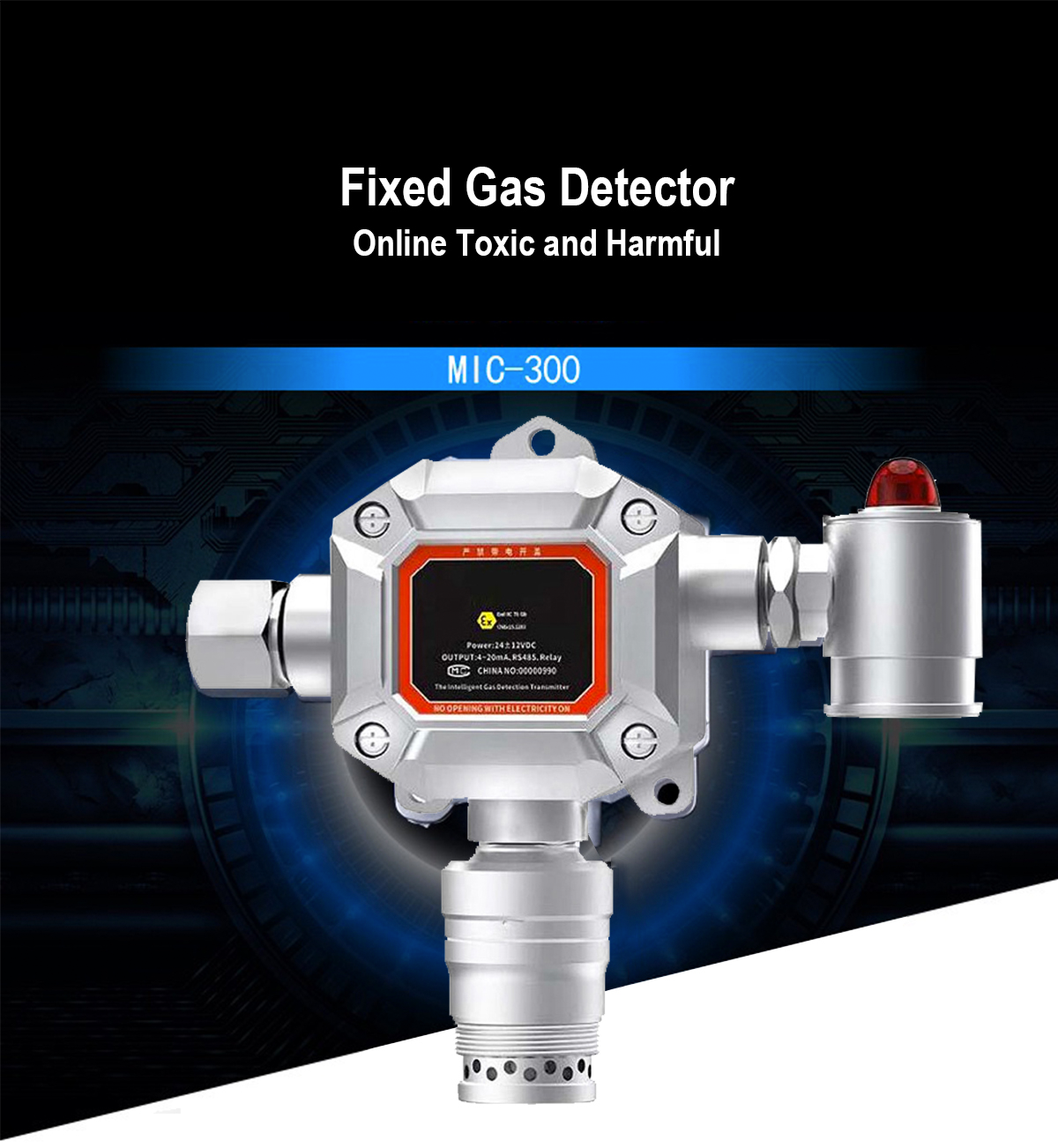

PID Zetron MIC300 Harmful Gas Detector Online ip66

MIC300 Bromomethane CH3Br Gas Monitoring Equipments

PID Detection Principles

OVERVIEW

MIC300 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.

With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.

FEATURES

Broad operating temperatures: -40～+70℃, and temperature compensation is supported.
Intrinsically safe circuit design, explosion-proof, with Level II lightning protection, and anti-static capabilities. Meet the national standard, and it is resistant to the high-intensity pulse surge current. With the function of preventing the reverse connection. It is compliant with EMI, and EMC standards.

Strong, durable and explosion-proof shell is suitable for the use at a variety of hazardous places and harsh industrial environments, is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.

Application

Fixed gas detector is mainly used in underground tunnels, sewage treatment plants, chemical plants, steel plants, coal mines, boiler rooms, oil pipelines, gas stations, indoor air quality testing, sterilization, frozen warehouses, underground corridors and other mixed gas scenarios.

SPECIFICATION

Type	Fixed Gas Detector
Detection range	0~ 10ppm 0~ 20ppm 0~50ppm 0~100ppm Other ranges can be customized
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), Other ranges can be customized
Detection principle	Electrochemical, infrared, thermal conductivity, PID photoionization, and so on. Depending on the type of gas, range, field environment and user demand, Sensor can be customized
Sensor service life	Electrochemical principle: 2 ~ 3 years; Infrared principle: 5 ~ 10 years; Thermal conductivity: 5 years
Allowable error	≤±3% F.S (other or higher precision levels can be customized)
Linearity	≤±2%	Repeatability	≤±2%	Uncertainty	≤±2%
Response time	T90≤30 seconds			Recovery time	≤30 seconds
Working environment	Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
Working voltage	12 ~ 30VDC direct current the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Power supply reference	24V, 2.1A is possible to drive 40 units of toxic gas detector, or 15 units of flammable, infrared gas detector.
Working method	Fixed type installation, online detection, diffusion type measurement
Protection level	IP65
Explosion-proof mark	ExdⅡCT6, certificate number: CNEx15.1283
Exterior dimensions	233×205×65mm (L×H×W)
Weight	1.0 Kg
Standard accessories	Manual, qualification certificate, warranty card, outer packaging box
