Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

Ask Lasest Price
Brand Name :	Zetron
Model Number :	MIC500S
Certification :	CE
Price :	USD 670-- 690/set
Payment Terms :	L/C, D/A, T/T, MoneyGram

Add to Cart

Product Details
Company Profile

Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

MIC500S Fixed Toxic And Harmful Gas Detector

OVERVIEW

MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.

With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.

Simple to install service and calibrate, MIC500S requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.

FEATURES

Mis-operation recognition function: automatic recognition and prevention of the concentration calibration mis-operation, which is possible to avoid the poor performance that may be caused by human factors. Zero-point automatic tracking; long-term use will not be affected by the zero drift. Multi-level calibration for target points, can ensure the linearity and accuracy of the measurements. Chinese or English interfaces can be selected. Broad operating temperatures: -40～+70℃, and temperature compensation is supported. Record the calibration logs, repair logs, failure history, failure countermeasure solutions, sensor service life due reminder, and function of reminder for the time of next concentration calibration.

APPLICATION

All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.

SPECIFICATION

Gas
NO/NO2can be customized
Range
0-100ppmother ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline TypeWall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP65; Exd Ⅱ CT6
Accessories
Manual, qualification certificate, warranty card, outer packaging
box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for a single
equipment is 24V, DC stabilized voltage switching power supply of
1A or greater than 1A
Working Method
Fixed type installation, online detection, diffusion type
measurement; and it is possible to select the measurement of
pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for
RS485, when the distance exceeded 100 meters, the single wire
diameter ≥1.5mm; and the shielding layer will be connected to the
earth.
Optional items

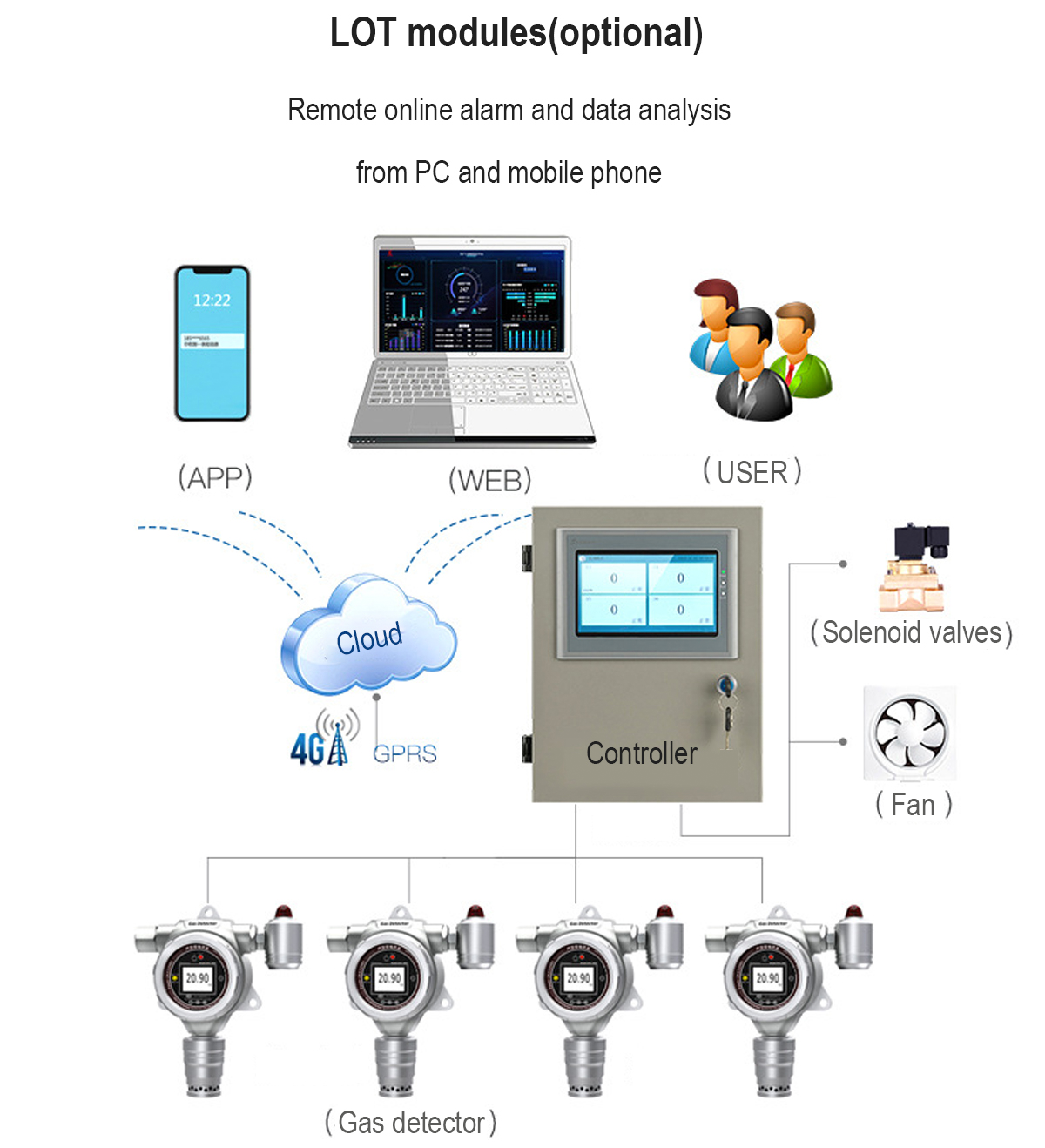

Alarms;Wireless Transmission;Pretreatment System; SD Card;Temperature and Humidity Measurement;Accessory for connection with computer for monitoring.
Installation Type Accessories(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes
(1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on
the pipeline (it is necessary to mark the flange or pipe size, such
as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10
m),vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters

Product Tags:


*From:	Your email address is incorrect!
*To:	Beijing Zetron Technology Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more Fixed Gas Detector products from this supplier

Find Similar Products By Category:

Measurement & Analysis Instruments

Hot Searches:

Beijing Zetron Technology Co., Ltd

Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

pipeline type combustible gas leak detector

100ppm combustible gas leak detector

fixed wall mounting combustible gas detector

Fixed Zetron MIC500S Combustible Gas Leak Detector Pipeline Type And Wall Mounting Type

Gas	NO/NO2 can be customized	Range	0-100ppm other ranges can be customized
Size	210×170×85mm (L×H×W)	Weight	1.8 Kg
Installation method	Pipeline Type Wall Mounting Type	Display	1.7-inch high-definition color screen
Environment	Temperature: -40 ℃ ~ + 70 ℃ Humidity: ≤10 ~ 95% RH (regular)	Approvals	IP65; Exd Ⅱ CT6
Accessories	Manual, qualification certificate, warranty card, outer packaging box
Working Voltage	12 ~ 30VDC direct current, the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
Working Method	Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
Connecting Cable	Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
Optional items	Alarms;Wireless Transmission;Pretreatment System; SD Card; Temperature and Humidity Measurement; Accessory for connection with computer for monitoring.
Installation Type Accessories (Optional configuration)	Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m), 24V switching power supply, pressure reducing valve, flow meters
