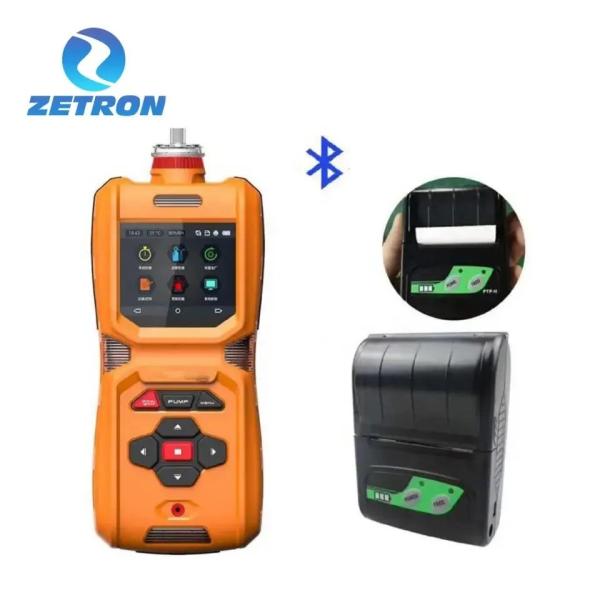

Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer

Ask Lasest Price
Brand Name :	Zetron
Model Number :	MS600-VOC
Certification :	CE
Price :	USD 446/set - 1298/set
Payment Terms :	T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :	1000 SET / week
Delivery Time :	1-10 work days

Add to Cart

Product Details
Company Profile

Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer

MS600-VOC Portable Multiple Gas Detector

OVERVIEW

High-precision temperature and humidity measurements (optional configuration). Real-time detection or timing detection is supported; when no detection will be done, it is possible to shut down the pump so as to extend the startup time. Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes sound & light alarms, vibration alarms, and display screen visual alarms. Alarm types include concentration alarms, under-voltage alarms, and failure alarms. Multiple alarm mode settings: low alarm, high alarm, interval alarm, and weighted average alarm. Mis-operation recognition function: automatic recognition and prevention of the concentration calibration misoperation, which is possible to avoid the poor performance that may be caused by human factors.

Ms600-Voc Handheld Voc Gas Detector Volatile Organic Compounds Gas Analyzer

FEATURES & BENEFITS

①2.5-inch high-definition color screen, display information such as
real-time concentration, alarm, time, temperature, humidity,
storage, and so on
②Graphical display,
③Simultaneously display the concentrations of five types of gases,
repeatedly display the concentration of single-channel gases in
large font, and display the real-time curve. And it is possible to
switch between three display modes.

· Temperature and humidity measurement function
· 1.2 m retractable sampling handle (1-10 meter hose, and the
standard length is 1 meter)
· 0.4 meter stainless steel sampling handle (with dust filter, not
retractable)
· High temperature sampling and cooling filter handle
· High temperature humidity pretreatment system· External remote
sampling pump
· Multiple humidity dust filter· CD-ROM (upper level computer
communication software)
· SD card storage
· USB disk storage
· External mini wireless infrared printer
· Wireless data communications: RS232, infrared communication,
automatic recognition

SPECIFICATION

Gas name	VOC
Detection range	0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL, 20%, 50%, 100%Vol, can be selected; and other ranges can be customized.
Resolution	0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more), 0.01 mg/l (0 ~ 200 mg/l), 0.1% LEL, 0.01%, 0.001% Vol
Detection principle	Electrochemical, catalytic combustion, infrared, thermal conductivity, PID photoionization, and so on, depending on the type of gas, range, field environment and user demand.
Sensor service life	Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years; thermal conductivity: 5 years; PID photoionization: 2 ~ 3 years.
Allowable error		≤±1% F.S (other precision levels can be customized)
Linearity		≤±1%	Repeatability	≤±1%	Uncertainty	≤±1%
Response time		T90≤20 seconds			Recovery time	≤30 seconds
Working environment		Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in filters can be used in high humidity or high dust environment.
Sample gas temperature		-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
Temperature and humidity measurement		Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH
Power supply		3.6VDC, 6000mA high capacity rechargeable polymer battery
Display mode		The 2.5-inch high-definition color screen
Detection mode		Built-in pump-suction type measurement, and flow rate at 500 ml/min. Calibration flow rate should be greater than 500 ml/min, three-way pipe should be connected, so as to ensure that the excess gas will be discharged from the bypass
Alarm mode		It is possible to set a sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface		USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage		Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is an optional configuration
Protection level		IP67
Explosion-proof type		Intrinsically safe type
Explosion-proof mark		Exia II CT6
Exterior dimensions		180×78×33mm (L×W×H)
Weight		350g
Detection mode		Built-in pump-suction type measurement, and flow rate at 500 ml / min. Calibration flow rate should be greater than 500 ml / min, three-way pipe should be connected, so as to ensure that the excessive gas will be discharged from the bypass
Alarm mode		It is possible to set as sound & light alarm, vibration alarm, sound & light + vibration alarm, turning off the alarm.
Communication interface		USB (charging and communication), optional: RS232, infrared communication, automatic recognition
Data storage		Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration
Protection level		IP67
Explosion-proof type		Intrinsically safe type
Explosion-proof mark		Exia II CT6

APPLICATION

All the cases which requires the portable rapid detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
