    MS104K-L Series Zetron Laser Methane Gas Detector Long Distance Detection Handheld

    Ask Lasest Price
    Brand Name : Zetron
    Model Number : MS104K-L Series
    Certification : atex
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 pieces per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    MS104K-L Series Zetron Laser Methane Gas Detector Long Distance Detection Handheld

    MS104K-L Series Remote Laser Methane Gas Detector


    OVERVIEW

    Handheld Remote Laser Methane Gas Detector is a light, compact, portable device that can match different lenses according to the user's different detection distance requirements, so as to take into account the volume and weight of the product and the detection distance at the same time. Widely used in city gas transmission and distribution pipelines, petroleum and petrochemical occasions.


    FEATURES

    ・ The protection level of the whole series reaches IP68. Similar to the appearance of flashlight, it is easy to hold and use for a long time. It practices the concept of reliable tools in the hands of inspectors and emphasizes the perfect combination of ergonomics and high performance.


    ・ Equipped with auxiliary sight to accurately locate the target under strong light. Multi-functional bracket and grip, convenient for high-rise detection and carrying electric vehicle, tripod and other accessories.


    ・ The endurance of L series remote measuring instrument can reach morethan 8-120 hours. The fully integrated intelligent battery technology of chargeand discharge management can adapt to the ambient temperature and ensure the whole day's work in cold climate.

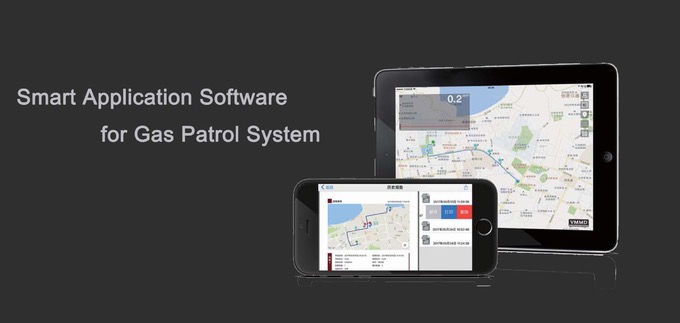

    ・ Supports the inspection APP. The Alpha One intelligent inspection system is easy to operate and powerful. It records the inspection path and alarm time in real time and automatically generates inspection reports. It supports iOS and Android system and can connect to the cloud information platform.


    APPLICATION

    1. Places inaccessible to personnel such as overhead pipelines and narrow spaces;

    2. Indoor places with windows, such as residential kitchens and laboratories that use gas, can be detected directly through the windows;

    3. Finding leaks of buried pipelines.


    SPECIFICATIONS

    Item:MS104K-L10MS104K-L20
    Measure PrincipleLaser Absorption SpectroscopyLaser Absorption Spectroscopy
    Static Detection Limitation5ppm.m5ppm.m
    Respond Time0.1s0.1s
    Sample Frequency100KHz100KHz
    Measure Range0-100,000ppm-m0-100,000ppm-m
    Maximum Detection Distance50m150m
    BatteryLi-ion, 8 hoursLi-ion, 12 hours
    SoftwareAlpha OneAlpha One
    Detection ObjectMethane (CH4)Methane (CH4)
    Laser for DetectionClass I, eyesafe laserClass I, eyesafe laser
    Laser for IndicatorClass IIIR, no direct vision or viewingClass IIIR, no direct vision or viewing
    Protection LevelIP68IP68
    Explosion ProofExib IIA T4 GbExib IIA T4 Gb
    Operation Temperature-20~50 degree-20~50 degree
    Operation Humidity<90%RH, no condensation<90%RH, no condensation
    Size170x52x52mm225x70x100mm
    Weight0.38 kg0.5 kg
