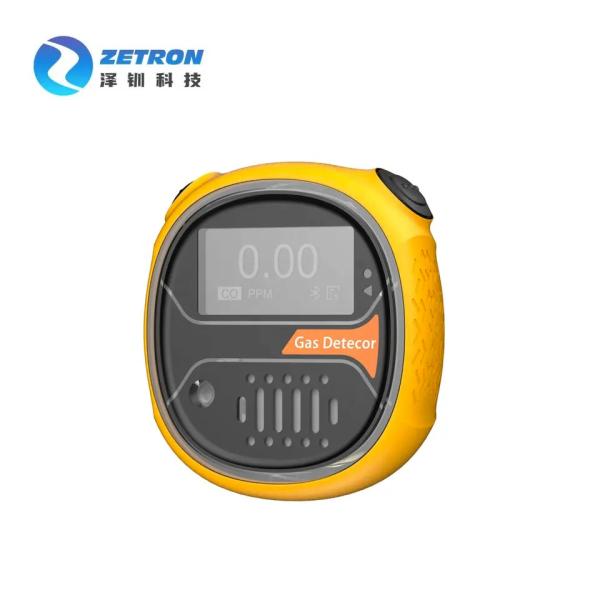

MS104K-S Portable Gas Detector

In some specific places there are often gas emissions, such as petrochemical, coal, metallurgy, chemical, municipal gas, environmental monitoring and many other places. And some of these gases may be dangerous, such as flammable, explosive or contaminated, then you need to use the gas detector to detect them.

MS104K-S is a compact, ultra-low power consumption, mobile gas detector for rapid detection of gas concentration. It can detect 1~4 kinds of gas at the same time at most. It has the function of large-capacity data storage. MS104K-S portable gas detector adopts a high-counting array display to display the concentration in real-time and record storage.
Protection level P65, up to IP68 needs special treatment, waterproof splash, dustproof, explosion-proof, shockproof, intrinsically safe circuit design, anti-static, anti-electromagnetic interference.

APPLICATION

The detector is widely used in petroleum, chemical industry,environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection, Archaeology and other industries and places that need safety monitoring for toxicity and harmfulness, explosion prevention.

PARAMETER

Detection gas	Complex gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, flammable gas EX) or any other single gas, except individual sensors with high power consumption
Detection range	CO (0 ~ 1000ppm), H2S (0 ~ 100ppm), O2 (0 ~ 30%VOL), Ex (0 ~ 100%LEL),Other range can be customized
Display mode	HD LCD dot matrix display, double button operation
Detection accuracy	≤±3% (F.S)
Response time	T90≤30s
Data storage	Standard 20,000 pieces of data capacity, Support the local view, delete or data export, storage time interval arbitrary Settings
Communication interface	Infrared communication, Optional Bluetooth, LORA communication, etc
Explosion-proof mark	Exia II CT4 Ga
Protection grade	IP65, Dustproof, Waterproof splash
Dimensions	77×68×35mm(L×W×H)
Weight	Less than 150g
