●Waterproof, dustproof, explosion-proof, shockproof, intrinsically
safe circuit design, anti-static, anti-electromagnetic
interference,
Passed the national standard test and CMC measurement instrument
production license certification
●Protection level IP65
●2.31-inch high-definition color screen displays real-time
concentration, alarm, time, temperature, humidity, storage,
communication, power,
Charge status and other information, the menu interface uses
high-definition simulation icons to display the function names of
each menu
●Large-capacity data storage function, supporting 100,000 data
storage capacity. Support real-time
Storage, timing storage, or only alarm concentration data and time,
support local viewing and deleting data,
The data can also be uploaded to the computer through the USB
interface, and the data can be analyzed, stored, and printed with
the host computer software.
●USB charging port, overcharge, over-discharge, overvoltage, short
circuit, overheat protection, 5-level accurate power display
●Using 2100mAH rechargeable polymer battery can work continuously
for a long time
●Sound and light alarm, vibration alarm, visual alarm,
under-voltage alarm, fault alarm, shutdown alarm.
●The alarm value can be set, and the alarm mode can be selected as
low alarm, high alarm, and interval alarm

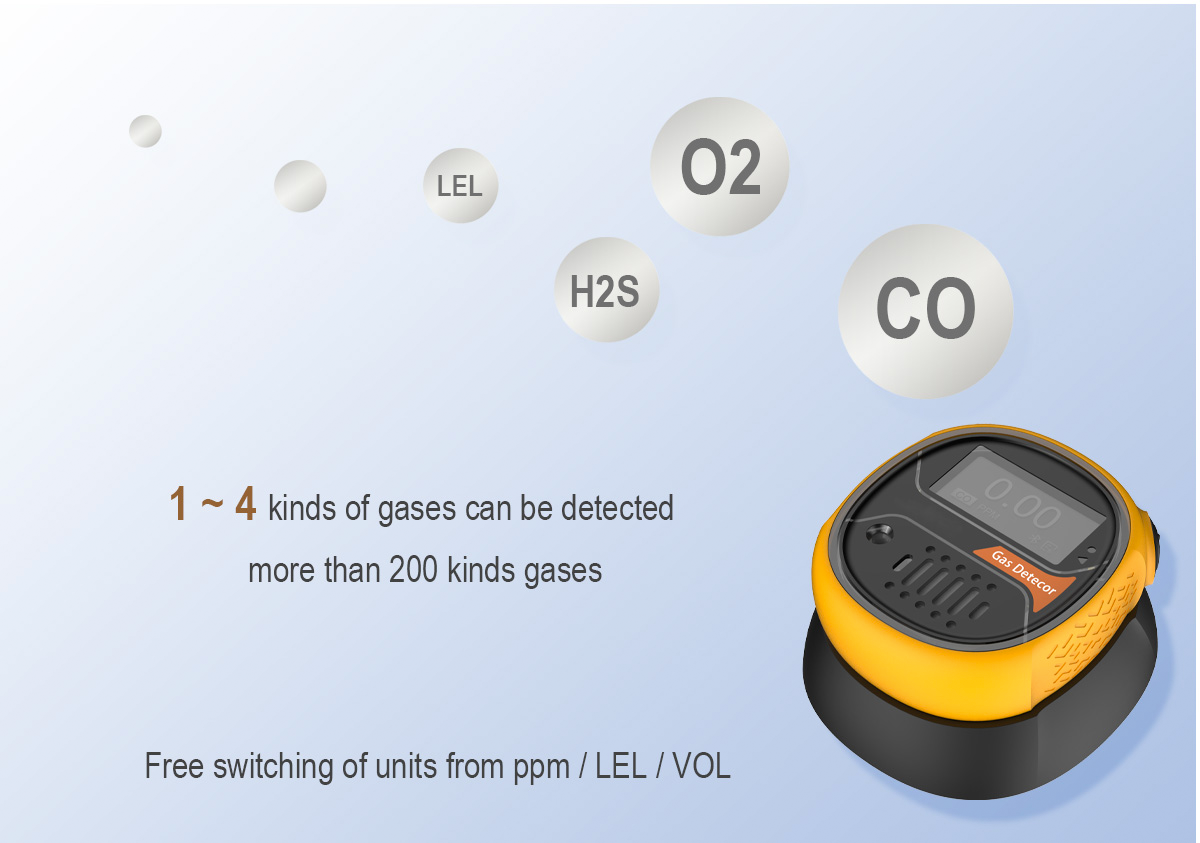

●It can be selected to detect 1～4 kinds of gases at the same time,
and the unit can be switched freely
Optional units: PPM, mg/m3, Vol%, LEL%, PPHM, ppb, mg/L
●Three display modes can be switched: display the concentration of
four gases at the same time, the concentration of the
single-channel gas and the real-time curve are displayed in large
fonts, each channel
APPLICATION
The detector is widely used in petroleum, chemical
industry,environmental protection, metallurgy, refining, gas,
biochemical medicine, agriculture, fire protection, Archaeology and
other industries and places that need safety monitoring for
toxicity and harmfulness, explosion prevention.
PARAMETER
| Detection gas | Complex gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2,
flammable gas EX) or any other single gas, except individual
sensors with high power consumption |
| Detection range | CO (0 ~ 1000ppm), H2S (0 ~ 100ppm), O2 (0 ~ 30%VOL), Ex (0 ~
100%LEL),Other range can be customized |
| Display mode | HD LCD dot matrix display, double button operation |
| Detection accuracy | ≤±3% (F.S) |
| Response time | T90≤30s |
| Data storage | Standard 20,000 pieces of data capacity, Support the local view,
delete or data export, storage time interval arbitrary Settings |
| Communication interface | Infrared communication, Optional Bluetooth, LORA communication, etc |
| Explosion-proof mark | Exia II CT4 Ga |
| Protection grade | IP65, Dustproof, Waterproof splash |
| Dimensions | 77×68×35mm(L×W×H) |
| Weight | Less than 150g |
