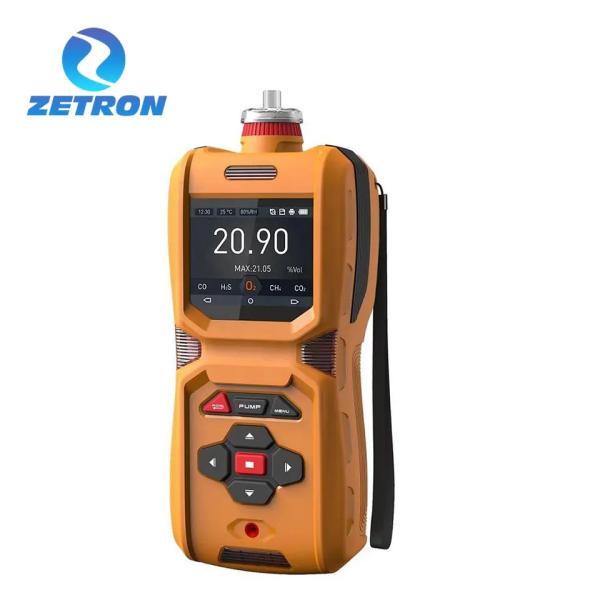

Gases to be detected | Arbitrary combination of 1 ~ 6 types of gases such as toxic gases,
oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC,
and so on.Optional configuration: temperature and humidity
measurements. |

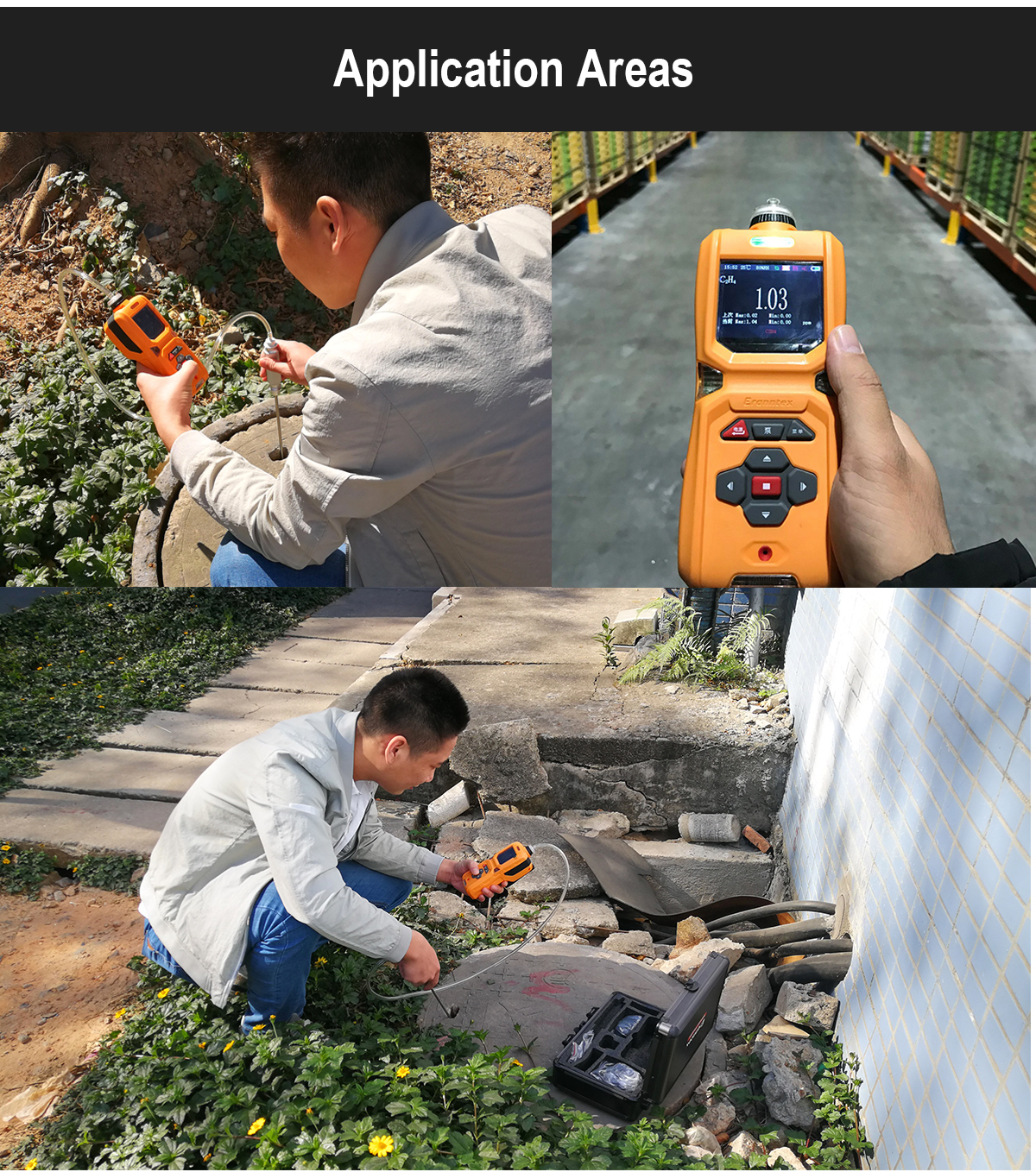

Application scenarios | All the cases which requires the portable rapid detection of gas
concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing,
smoke gas analysis, air governance, and so on. |
Detection range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL,
20%, 50%, 100%Vol, can be selected; and other ranges can be
customized. |
Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%LEL
0.001% Vol |
Detection principle | Electrochemical, catalytic combustion, infrared, thermal
conductivity,PID photoionization, and so on. Depending on the type of gas, range, field environment and user
demand. |
Sensor service life | Electrochemical principle: 2 ~ 3 years;Oxygen gas: 2 years or 6 years can be selected; Infrared principle: 5 ~ 10 years;
Catalytic combustion: 3 years;Thermal conductivity: 5 years;PID photoionization: 2 ~ 3 years. |
Allowable error | ≤±1% F.S (other precision levels can be customized) |
Linearity | ≤±1% | Repeatability | ≤±1% | Uncertainty | ≤±1% |
Response time | T90≤20 seconds | Recovery time | ≤30 seconds |
Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in
filters can be used in high humidity or high dust environment. |
Sample gas temperature | -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature
sampling and cooling filter handle will be possible to detect the
smoke gas at the temperature of 1300 ℃. |
Temperature and humidity measurement | Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy
level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH |
Power supply | 3.6VDC, 6000mA high capacity rechargeable polymer battery |
Display mode | 2.5-inch high-definition color screen |
Detection mode | Built-in pump-suction type measurement, and flow rate at 500 ml /
min. Calibration flow rate should be greater than 500 ml / min,
three-way pipe should be connected, so as to ensure that the
excessive gas will be discharged from the bypass |
Alarm mode | It is possible to set as sound & light alarm, vibration alarm,
sound & light + vibration alarm, turning off the alarm. |
Communication interface | USB (charging and communication), optional: RS232, infrared
communication, automatic recognition |
Data storage | Standard configuration is the data storage capacity for 100, 000
entries; SD card storage function is optional configuration |
Protection level | IP67 |
Explosion-proof type | Intrinsically safe type |
Explosion-proof mark | Exia II CT6 |
Exterior dimensions | 180×78×33mm (L×W×H) |
Weight | 350g |
Standard accessories | Manual, qualification certificate, warranty card, USB charger
(including the data cable), high-grade aluminum instrument case,
belt clip, humidity dust filter |
Optional items | 1)Temperature and humidity measurement function2)1.2 m retractable sampling handle (1-10 meter hose, and the
standard length is 1meter) 3) 0.4 meter stainless steel sampling handle (with dust filter, not
retractable), 4) high temperature sampling and cooling filter
handle 5) high temperature humidity pretreatment system 6) multiple humidity dust filter 7) hanging rope, CD-ROM (upper level computer communication
software) 8) SD card storage, wireless data communications, external mini
wireless infrared printer |
