MIC300 Fixed Gas Monitoring System
Single Gas | Remote Control | Alarm
OVERVIEW
MIC300 Series gas detector can be used in 24 hours continuous
online monitoring of concentrations of multiple types of gases in
the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a
Distributed Control System (DCS) to provide warnings and enable
control of high levels in the working environment.
Simple to install service and calibrate, MIC300 requires no hot
work permit and the PID sensor is accessible and changeable in a
matter of seconds.
Strong, durable and explosion-proof shell and fluorocarbon surface
treatment process are suitable for the use at a variety of
hazardous places and corrosive environments, it is wear-resistant.
Simple calibration procedure.
Easily integrated into a control system.
FEATURES & BENEFITS
◼︎ Fast and efficient gas detection function
It can be used in 24 hours continuous online monitoring of single
field gas concentration and the types for detection are more than
500 types.
◼︎ Diversified communication methods
It is possible for the real-time monitoring via the wired or remote
wireless transmission, and network transmission.
Three-wire system 4 ~ 20mA standard signal and standard bus RS485
(modbus-RTU) simultaneous output.
It is compatible with secondary instrument, data acquisition
module, PLC, DCS system, and it is possible to drive the related
equipment.
◼︎ Powerful and convenient humanized function
Data recovery function; in case of mis-operation, it is possible to
select partial or full recovery.
Multiple alarm modes, and multi-directional and three-dimensional
indication alarm states, includes: 2 sets of relay switch output,
sound & light alarm (optional configuration).Alarm types include:
concentration alarm, and failure alarm.
Mis-operation recognition function: automatic recognition and
prevention of the concentration calibration mis-operation, which is
possible to avoid the poor performance that may be caused by human
factors.
Zero-point automatic tracking; long-term use will not be affected
by the zero drift.
Multi-level calibration for target points, can ensure the linearity
and accuracy of the measurements.
Broad operating temperatures: -40～+70℃, and temperature
compensation is supported.

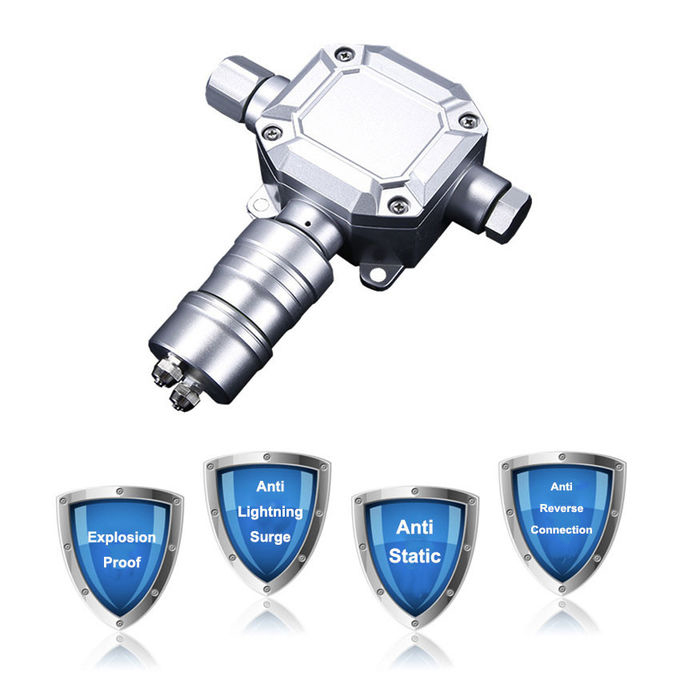

Intrinsically safe circuit design, explosion-proof, with Level II
lightning protection, and anti-static capabilities. Meet the
national standard, and it is resistant to the high-intensity pulse
surge current. With the function of preventing the reverse
connection. It is compliant with EMI, and EMC standards.
◼︎ ◼︎ ◼︎ ◼︎ Optional Items ◼︎ ◼︎ ◼︎ ◼︎
◼︎ Wireless transmission
It is possible to transfer data wirelessly to the cell phone,
remote monitoring center, monitoring computers and other monitoring
equipment, which will utilize the upper-level host to realize the
functions of data analysis, storage, printing or the like on the
computer.
◼︎ Pretreatment system
Room temperature and high humidity pretreatment system
High temperature and high humidity pretreatment system
High dust pretreatment system
◼︎ Accessory for connection with computer for monitoring
Free upper-level host software, RS485 / RS232 converter
For laptop without RS232 interface, USB / RS232 converting and
connecting cable is needed, if the network transmission is needed,
TCP / IP converter will be further needed.
SPECIFICATION
Gas | Toxic gases, oxygen gas, carbon dioxide, inflammable and explosive
gases, TVOC, and so on. |
| Detection range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 100%LEL, 20%, 50%,
100%Vol can be selected; and other ranges can be customized. |
| Resolution | 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 1000 ppm or
more), 0.1% LEL, 0.01%Vol |
| Detection principle | Electrochemical, infrared, thermal conductivity, PID
photoionization, and so on.Depending on the type of gas, range, field environment and user
demand, Sensor can be customized |
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Infrared principle: 5 ~ 10 years; Thermal conductivity: 5 years |
| Allowable error | ≤±3% F.S (other or higher precision levels can be customized) |
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
Response time | T90≤30 seconds | Recovery time | ≤30 seconds |
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular) |
| Working voltage | 12 ~ 30VDC direct current the standard power supply for a single equipment is 24V, DC
stabilized voltage switching power supply of 1A or greater than 1A |
| Power supply reference | 24V, 2.1A is possible to drive 40 units of toxic gas detector, or 15 units of flammable, infrared gas detector. |
| Working method | Fixed type installation, online detection, diffusion type
measurement |
| Protection level | IP65 |
| Explosion-proof mark | ExdⅡCT6, certificate number: CNEx15.1283 |
| Exterior dimensions | 233×205×65mm (L×H×W) |
| Weight | 1.0 Kg |
| Standard accessories | Manual, qualification certificate, warranty card, outer packaging
box |
APPLICATION
All the cases which requires the fixed installation, and online
detection of gas concentrations such as Chemical Industry, Power
Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper
Industry, Waste Water Treatment Plants, Commercial & Industrial
HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey
Arenas,Cannabis & Hemp Oil, Breweries and so on.
