    0-200Mg/L Ozone O3 Gas Detector Alarm MIC500S Outdoor / Indoor Ultraviolet Sensor

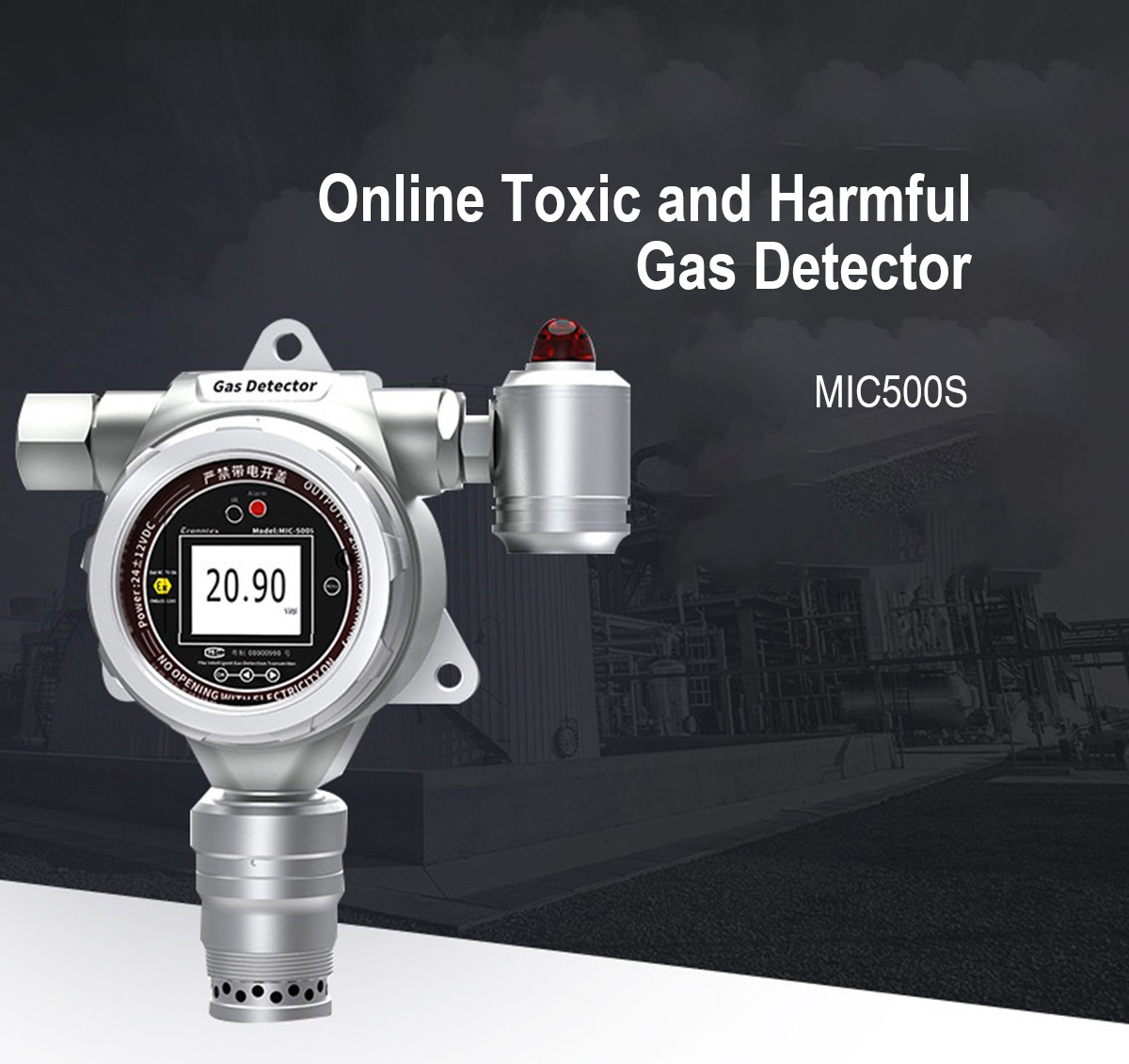

    MIC500S Fixed Toxic And Harmful Gas Detector


    OVERVIEW

    MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
    With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.
    Simple to install service and calibrate, MIC500S requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
    0-200Mg/L Ozone O3 Gas Detector Alarm MIC500S Outdoor / Indoor Ultraviolet Sensor0-200Mg/L Ozone O3 Gas Detector Alarm MIC500S Outdoor / Indoor Ultraviolet Sensor0-200Mg/L Ozone O3 Gas Detector Alarm MIC500S Outdoor / Indoor Ultraviolet Sensor0-200Mg/L Ozone O3 Gas Detector Alarm MIC500S Outdoor / Indoor Ultraviolet Sensor
    SPECIFICATION

    Gases to be detectedOzone/O3 Gas Detector
    Detection range

    0--1000 ppm

    0-- 5000 ppm

    0-- 50000ppm

    0-- 200mg/L

    Other ranges can be customized

    Resolution

    0.01ppm or 0.001ppm (0 ~ 10 ppm);
    0.01ppm (0 ~ 100 ppm),
    0.1ppm (0 ~ 1000 ppm),
    1ppm (0 ~ 10000 ppm or more),
    0.01 mg/l (0 ~ 200 mg/l),
    0.1% LEL,
    0.01%Vol

    0.001% Vol

    Other ranges can be customized

    Detection principle

    Ultraviolet sensor

    Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.

    Depending on the type of gas, range, field environment and user demand,

    Sensor can be customized

    Sensor service life

    Electrochemical principle: 2 ~ 3 years;

    Infrared principle: 5 ~ 10 years;

    Thermal conductivity: 5 years

    Allowable error≤±3% F.S (other or higher precision levels can be customized)
    Linearity≤±2%Repeatability≤±2%Uncertainty≤±2%
    Response timeT90≤20 secondsRecovery time≤30 seconds
    Working environmentTemperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular)
    Display method1.7-inch high-definition color screen
    Working voltage

    12 ~ 30VDC direct current

    the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A

    Protection levelIP65
    Explosion-proof typeExplosion suppression type
    Explosion-proof markExdⅡCT6, certificate number: CNEx15.1283

    FEATURES

    ■Integrated sound & light alarming device, split-type sound & light alarming device,
    ■Wireless transmission
    ①It is possible to transfer data wirelessly to the cell phone, remote monitoring center,
    monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize
    the functions of data analysis, storage, printing, or the like on the computer.
    ■ Pretreatment system
    ①Room temperature and high humidity pretreatment system
    ②High temperature and high humidity pretreatment system
    ■Accessory for connection with a computer for monitoring
    ①Free upper-level host software, RS485 / RS232 converter
    ②For laptops without RS232 interface, USB / RS232 converting and connecting cable is needed,


    APPLICATION

    All the cases require the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
