    OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser

    Ask Lasest Price
    Brand Name : Zetron
    Model Number : ZN3101
    Certification : CE/Atex
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : in stock
    • Product Details
    • Company Profile

    OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser

    Zetron ZN3101 Plug-in High Temperature Zirconia Oxygen Analyzer


    OVERVIEW


    ZN3101 Zirconia Oxygen Analyzer (plug-in type) is composed of an intelligent signal converter with microprocessor as its core and a zirconia detector and used for online detection of oxygen content in the gas detected.

    OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser


    FEATURES

    • Zirconia detector adopted, featuring long service life, stable performance, and quick response;
    • Alarm point can be set at will within the whole range;
    • Alarm for out-of-control temperature;
    • Display switchable between oxygen content and operating furnace temperature.

    SPECIFICATION

    Measurement range

    0.0~5.0%/10%/25% O2 optional

    Accuracy

    ±2% F.S

    Resolution

    ≤ ±1.5%

    Stability

    Zero drift ≤ ±2% FS/7d;

    Span drift ≤ ±2% FS/7d

    Response time

    90 ≤ 5 sec

    Operating temperature

    700℃

    Preheating time

    ≤ 15 min

    Output signal

    4~20 mA

    Operating environment

    Temperature: -5℃~+45℃;
    Humidity: ≤ 90% RH;

    Operating power supply

    1. 220 VAC±10%, 50 Hz±5%;

    Overall dimensions of secondary meter

    Panel-mounted: 160 mm (W) × 80 mm (H) × 250 mm (D);

    Wall-mounted: 325 mm (W) × 250 mm (H) × 110 mm (D);

    Mounting dimensions of secondary meter

    Panel-mounted: 150 mm (W) × 75 mm (H);

    Wall-mounted: 310 mm (W) × 128 mm (H);

    Detector length

    0.4 m, 0.6 m, 0.8 m, 1.0 m, 1.2 m, 1.5 m (optional)


    APPLICATION

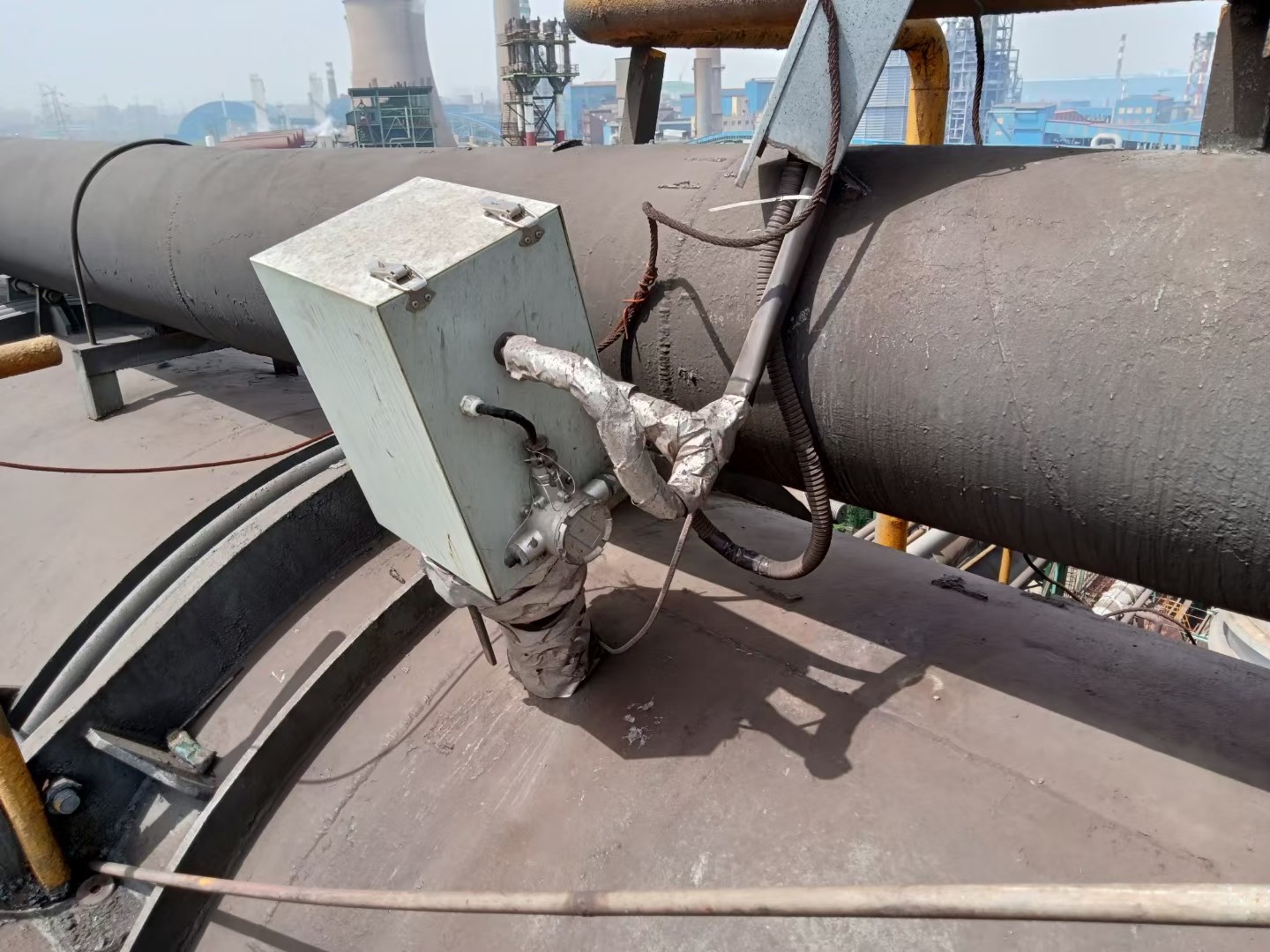

    Automatic analysis on oxygen content in the exhaust smoke from electric, metallurgical, heating, building material, electronic, power station, and industrial boilers and various combustion systems.

    OEM Online Infrared Syngas Analyzer Plug In Zirconia Oxygen Analyser


    FAQ

    Q: What is your terms of payment ?
    A:We accept trade assurance, western union ,Visa master card and tt.
    Trade assurance can protect you, when you confirm the product then the money into my account.

    Q: When do you reply to messages?
    A: We will reply you for your inquiry in 24 hours.

    Q: What is the warranty for your product ?
    A: Warranty: 12 months, Lifetime maintenance

    Q: When do you send the products? And how do you send it ?
    A: For the small order, we will send out the goods with 5 days,If have stock ,we will send immediately.
    We send them by ups, fedex, tnt or dhl. For big order, normal is 20 days will finish.

    Q:Do you accept OEM or revised logo, color, model, size?
    A:Yes, we accept OEM for the qualify buyer.We can make the products according to customer personal requirement.

    Q: How about the quality of the managements ?
    A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

    Q: How about your after-sale service?
    A: After sending, we will track the products for you , until you get the products.
    When you got the goods, test them, and give me a feedback.
    If you have any questions about the problem, contact with us, we will offer the solve way for you.
