Biogas Analyzer
OVERVIEW

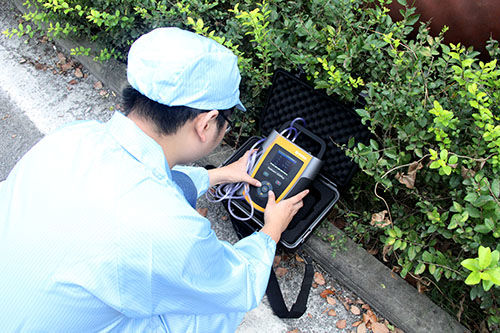

Handheld Biogas Analyzer is designed to measure CH4, CO2, O2, H2S standard gases and optional H2, CO gases, even biogas flow
monitoring. This model is powered by lithium battery and can be
used without AC power. It is modular sensor design ensures easy on
operation and maintenance.
FEATURES
• Up to 6 gases measuring: CH4, CO2, H2S, O2, H2, CO gases, even
biogas flow monitoring
• Modular sensor design ensures easy on operation and maintenance
• Blue tooth communication to upload testing data into Mobile by
specified APP directly
• Rechargeable Lithium battery
• GPS positioning and location
• Lightweight, robust design, user-friendly handheld biogas
analyzer.
SPECIFICATION
| General Parameter |
| Measurement | CO2, CH4, H2, O2 |
| CO2,H2(ECD) gas flow |
| Technology | CO2.CH4 |
| O2 (ECD),H2(TCD) |
| Range | CO2 0-50%, CH4 0-100%, H2S 0-9999ppm,O2 0-25% |
| Measurement range can be customized |
| Resolution | CO2. CH4H2. O2 0.01% |
| Precision | CO2. CH4 ≤1% FS |
| CO, H2S, O2, CnHm≤2% FS |
| Flow | 0.7-1.2 L/min |
| Inlet pressure | 2KPa-50KPa |
| Sampling gas condition | no water vapor, no dust, no tar |
| Response time(T90) | <15s (NDIR) |
| Working Environment |
| Working temperature | -10 to 40 ℃ |
| Relative humidity | ≤95% non condensing |
| Ambient pressure | 70-120 kРа |
| Dimensions |
| Size | 295mm(L)*196mm(W)*62mm(H) |
| Weight | 1.2kg |
APPLICATION
Biogas plants, landfill sites, water treatment, sludge digestion,
biomethane production, CDM project ,anaerobic digestion and other
fermentation processes.
FAQ
Q: What is your terms of payment ?
A:We accept trade assurance, western union ,Visa master card and
tt.
Trade assurance can protect you, when you confirm the product then
the money into my account.
Q: When do you reply to messages?
A: We will reply you for your inquiry in 24 hours.
Q: What is the warranty for your product ?
A: Warranty: 12 months, Lifetime maintenance
Q: When do you send the products? And how do you send it ?
A: For the small order, we will send out the goods with 5 days,If
have stock ,we will send immediately.
We send them by ups, fedex, tnt or dhl. For big order, normal is 20
days will finish.
Q:Do you accept OEM or revised logo, color, model, size?
A:Yes, we accept OEM for the qualify buyer.We can make the products
according to customer personal requirement.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products
will be fully pre-inspection by QC departments before shipping to
you . We have the certification of ISO,CE we could send the
certification test of our company to you.
Q: How about your after-sale service?
A: After sending, we will track the products for you , until you
get the products.
When you got the goods, test them, and give me a feedback.
If you have any questions about the problem, contact with us, we
will offer the solve way for you.
