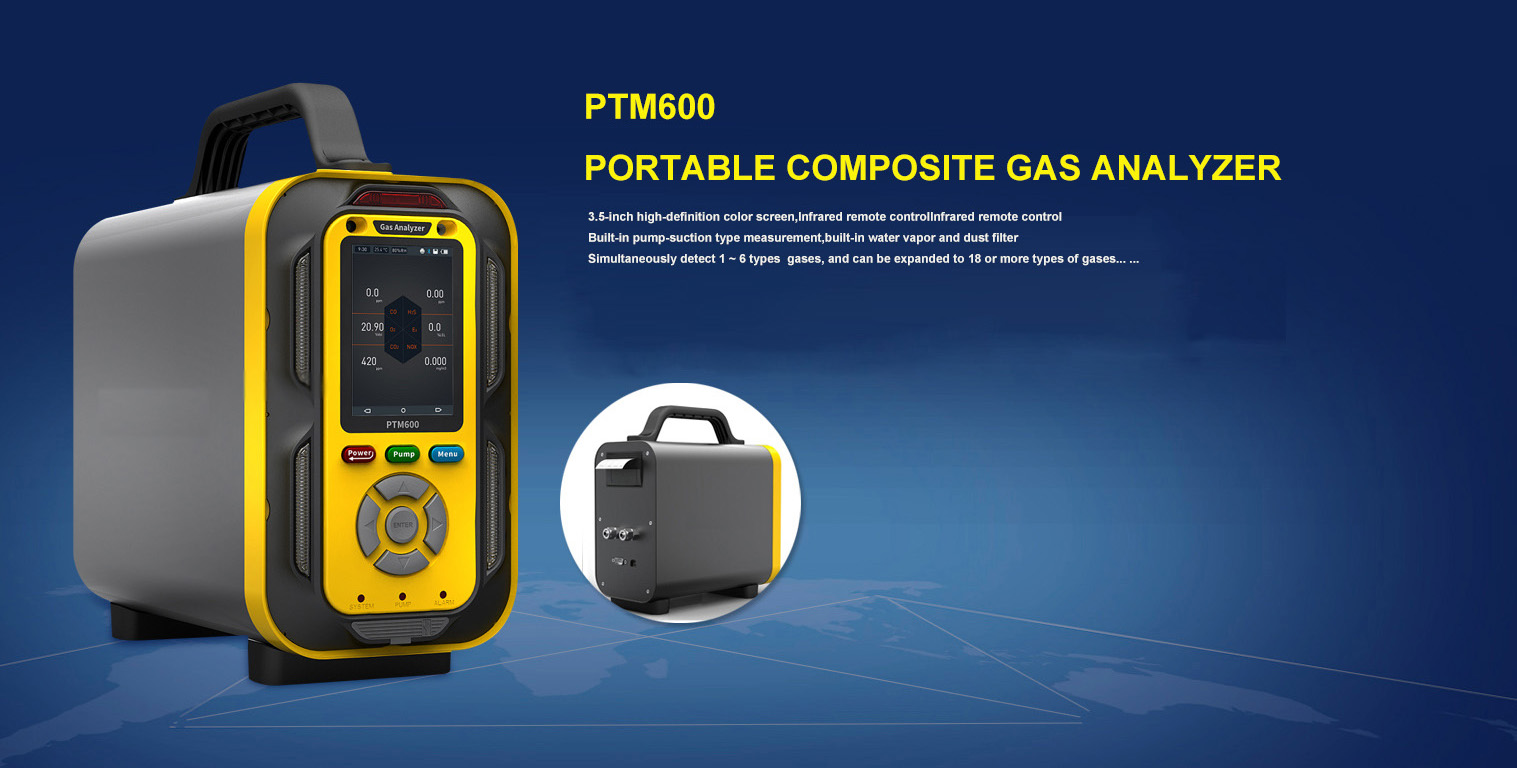

Zetron PTM600 Portable Flue Gas Analyzer
OVERVIEW
PTM600 provided with high measurement precision, stable performance and
simple operation and convenient to carry. It is suitable for indoor
environment of family, office, inside of cars and natural
environment, etc.
It is possible to simultaneously detect 1 ~ 6 types of gases, which
can be expanded to 18 or more types of gases, and the types for
detection are more than 500 types.
FEATURES & BENEFITS
①It is possible to simultaneously detect 1 ~ 6 types of gases,
which can be expanded to 18 or more, and the types for detection
are more than 500 types.
②There are 7 gas units to display, and the units can be switched
freely. Units that can be selected: PPM, mg/m3, Vol%, LEL%, PPHM,
ppb, mg/l.
①3.5-inch high-definition color screen, display the information
such as real-time concentration, alarm, time, temperature,
humidity, storage, and so on. The menu interface adopted high
definition simulation graphics to display the function name of each
menu.
②Graphical display, and use the form of curve to reflect the trend
of gas concentration changes in a certain period of time.
③Simultaneously display the concentrations of five types of gases,
repeatedly display the concentration of single-channel gases in
large font, and display the real-time curve. And it is possible to
switch among three display modes.
①Standard configuration is the data storage capacity for 100, 000
entries; real-time storage and fixed time storage are supported, or
only the data of the alarm concentration will be stored. Large
capacity can be customized.
②It is supported to use the local host to view, and delete data,
and upload the data via USB, RS232 interface or infrared
communication to the computer for data analysis or printing.
① 0.4 meter stainless steel sampling handle (with dust filter, not
retractable) ,preliminary treatment of the detection gas, so as to
protect the equipment.
②Multiple alarm modes, and multi-directional and three-dimensional
indication alarm states. It includes sound & light alarm, vibration
alarm, display screen visual alarm. Alarm types include:
concentration alarm, under-voltage alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval
alarm, and weighted average alarm.
③Zero-point automatic tracking; long-term use will not be affected
by the zero drift.
④Multi-level calibration for target points, can ensure the
linearity and accuracy of the measurements.
⑤Log recording Record the calibration logs, repair logs, failure
history, failure countermeasure solutions, sensor service life due
reminder, and function of reminder for the time of next
concentration calibration.
⑥Data recovery function; in case of mis-operation, it is possible
to select partial or full recovery.
⑦Mis-operation recognition function: automatic recognition and
prevention of the concentration calibration mis-operation, which is
possible to avoid the poor performance that may be caused by human
factors.
SPECIFICATION
| Gases to be detected | Arbitrary combination of 1 ~ 6 types of gases which can be expanded
to 18 or more types of gases, such as toxic gases, oxygen gas,
carbon dioxide, inflammable and explosive gases, TVOC, and so on.
Optional configuration: temperature and humidity measurements. |
| Application scenarios | All the cases which requires the portable rapid detection of gas
concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing,
smoke gas analysis, air governance, and so on. |
| Detection range | 0 ~ 1, 10, 100, 1000, 5000, 50000, 100000ppm, 200 mg/L, 100%LEL,
20%, 50%, 100%Vol, can be selected; and other ranges can be
customized. |
| Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm);
0.01ppm (0 ~ 100 ppm),
0.1ppm (0 ~ 1000 ppm),
1ppm (0 ~ 10000 ppm or more),
0.01 mg/l (0 ~ 200 mg/l),
0.1% LEL,
0.01%,
0.001% Vol |
| Detection principle | Electrochemical, catalytic combustion, infrared, thermal
conductivity, PID photoionization, and so on, depending on the type
of gas, range, field environment and user demand. |
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6
years can be selected; infrared principle: 5 ~ 10 years;
catalytic combustion: 3 years; thermal conductivity: 5 years; PID
photoionization: 2 ~ 3 years. |
| Allowable error | ≤±2% F.S (other or higher precision levels can be customized) |
| Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% |
| Response time | T90≤20 seconds | Recovery time | ≤30 seconds |
| Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH, and built-in
filters can be used in high humidity or high dust environment. |
| Sample gas temperature | -40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature
sampling and cooling filter handle will be possible to detect the
smoke gas at the temperature of 1300 ℃. |
| Temperature and humidity measurement | Optional configuration: temperature at -40 ℃ ~ + 70 ℃, accuracy
level at 0.5 ℃; humidity at 0 ~ 100% RH, precision level at 3 % RH |
| Power supply | 3.6VDC, 10000mA high capacity rechargeable polymer battery |
| Display mode | 3.5-inch high-definition color screen |
| Detection mode | Built-in pump-suction type measurement, and flow rate at 800 ml /
min. Calibration flow rate should be greater than 800 ml / min,
three-way pipe should be connected, so as to ensure that the
excessive gas will be discharged from the bypass |
| Alarm mode | It is possible to set as sound & light alarm, vibration alarm,
turning off the alarm. |
| Communication interface | USB (charging and communication), optional: RS232, infrared
communication, automatic recognition |
| Data storage | Standard configuration is the data storage capacity for 100, 000
entries; SD card storage and USB disk storage functions are
optional configuration. |
| Protection level | IP66 |
| Explosion-proof type | Intrinsically safe type |
| Explosion-proof mark | Exia II CT6 |
| Exterior dimensions | 230×210×120 mm (L×H×W) |
| Weight | 2.5Kg |
| Standard accessories | Manual, qualification certificate, warranty card, USB charger
(including the data cable), high-grade aluminum instrument case,
built-in humidity dust filter, 0.4 meter stainless steel sampling
handle (1 meter of hose, with dust filter, not retractable) |
| Optional items | Temperature and humidity measurement function, 1.2 m retractable
sampling handle (1-10 meter hose, and the standard length is 1
meter), external remote sampling pump, high temperature sampling
and cooling filter handle, high temperature humidity pretreatment
system, CD-ROM (upper level computer communication software),
external mini wireless infrared printer, built-in mini printer, SD
card storage, USB disk storage, wireless data communications.
|
APPLICATION
All the cases which requires the portable rapid detection of gas
concentrations such as petroleum, chemical, pharmaceutical,
environmental protection, combustion gas distribution, warehousing,
smoke gas analysis, air governance, and so on.
