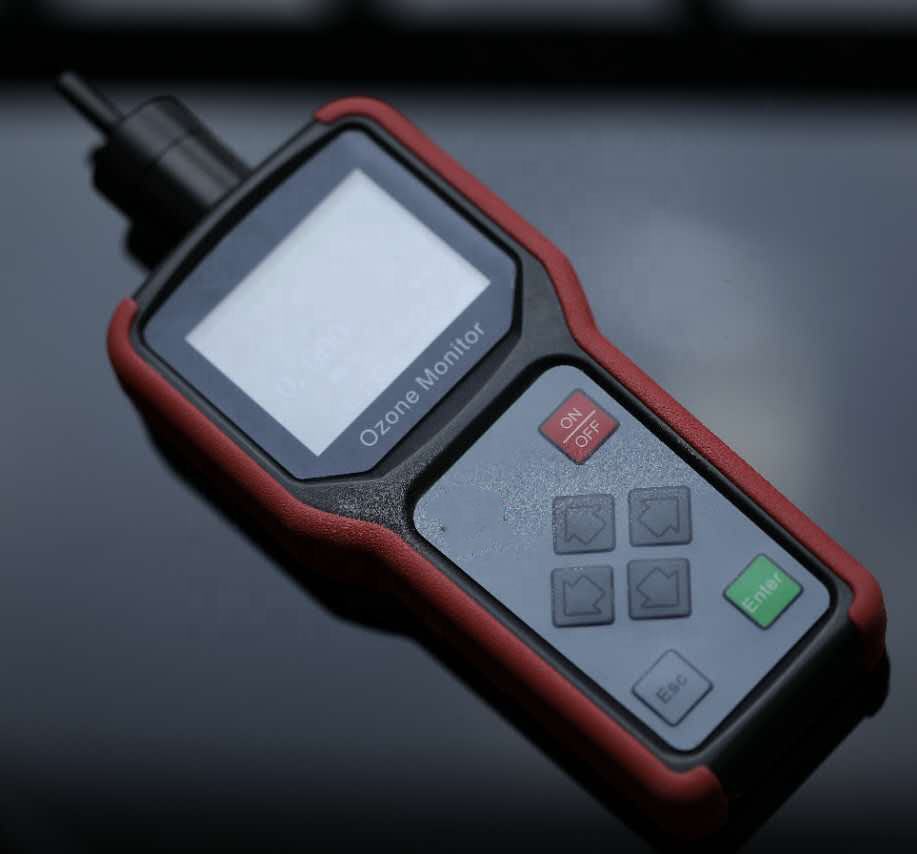

ZC10 Handheld Ozone Detector is made with electronic chemical
sensors and microcontroller technology. It is suitable for gas
concentration detection in various industrial and special
environments.
ZC10 Handheld Ozone Detector has the advantages of fast response
speed, high measurement accuracy, and good stability and
repeatability, with data storage, data export, environmental
temperature and humidity test functions, which makes it occupying
the leading level in China.
FEATURE
1. Using new semiconductor nm process ultra-low-power 32-bit
microprocessor.
2. 2.6 inch IPS color screen, the resolution is 320x240.
3. Switch freely between PPM and mg/m3
4. Data storage function(16000 groups of data can be stored),
historical data can be
viewed on the screen and downloaded by USB.
5. Functions of measuring temperature and humidity.The temperature and humidity values of gas in the field or pipeline
can be detected.
6. Built-in strong air pump, can work in micro-negative pressure
environment.
7. Functions of over-voltage protection, over-charge protection,
resistthe ance of static,
electromagnetic interference, etc.
8. All Chinese/English operation menu, simple and useful.
9. Built-in 4000mA rechargeable Li-ion battery with Ultra-long
Standby Time.
10. Delay detection, timing detection and automatic shutdown when
not working.
SPECIFICATION
Operating & Storage Environment | Temperature: -20°C~55°C (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing)
Pressure: 95~110kPa |
Sampling method | Diffusion type |
Detecting Range | CO: 0~1000ppm
H2S:0~100 PPM
O2: 0~30%vol
Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL |
Sensor | O2 /H2S / CO: plug-in electrochemical sensor |
Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low
alarm, prompt tone, automatic shutdown alarm |
Resolution | 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX) |
Accuracy | 3% F.S |
Response time | 10s |
Repeatability | 1% |
Zero drift | 1% |
Data record | 500 sets of data storage |
Display | Alphanumeric large LCD displays the real time gas concentration and
alarm stage |
Backlight | Automatically activated when working in poor lighting environment
or the alarm sounding or the button is knobbed down. |
Self-checking Function | Self-checking Battery power, display, sensor, hardware failure |
Explosion-proof | EXiaIICT4 |
Protection grade | IP65 |
Power Supply | Rechargeable lithium battery |
APPLICATION
The detector is widely used in petroleum, chemical industry,
environmental protection, metallurgy, refining, biochemical
medicine, agriculture, fire control, archaeology, and other
industries and places that need safety detection of toxic and
harmful, explosion prevention.
The detector can effectively predict the concentration of dangerous
gas alarms, to ensure that the safety of staff life is not
threatened, production equipment is not lost.
