Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy

MIC500S Fixed Toxic And Harmful Gas Detector

OVERVIEW

MIC500S Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the field. The types for detection are more than 500 types. With a 4-20 mA analog output, can be simply integrated into a Distributed Control System (DCS) to provide warnings.

Toxic And Harmful Fixed Gas Detector Continuous Online Monitoring Mic500s High Accuracy

SPECIFICATION

Gas
CO2 (Carbon Dioxide)
Range
0-50000PPM;0-100%LEL ;
0-100%Vol.other ranges can be customized
Size
210×170×85mm (L×H×W)
Weight
1.8 Kg
Installation method
Pipeline TypeWall Mounting Type
Display
1.7-inch high-definition color screen
Environment
Temperature: -40 ℃ ~ + 70 ℃Humidity: ≤10 ~ 95% RH (regular)
Approvals
IP65; Exd Ⅱ CT6

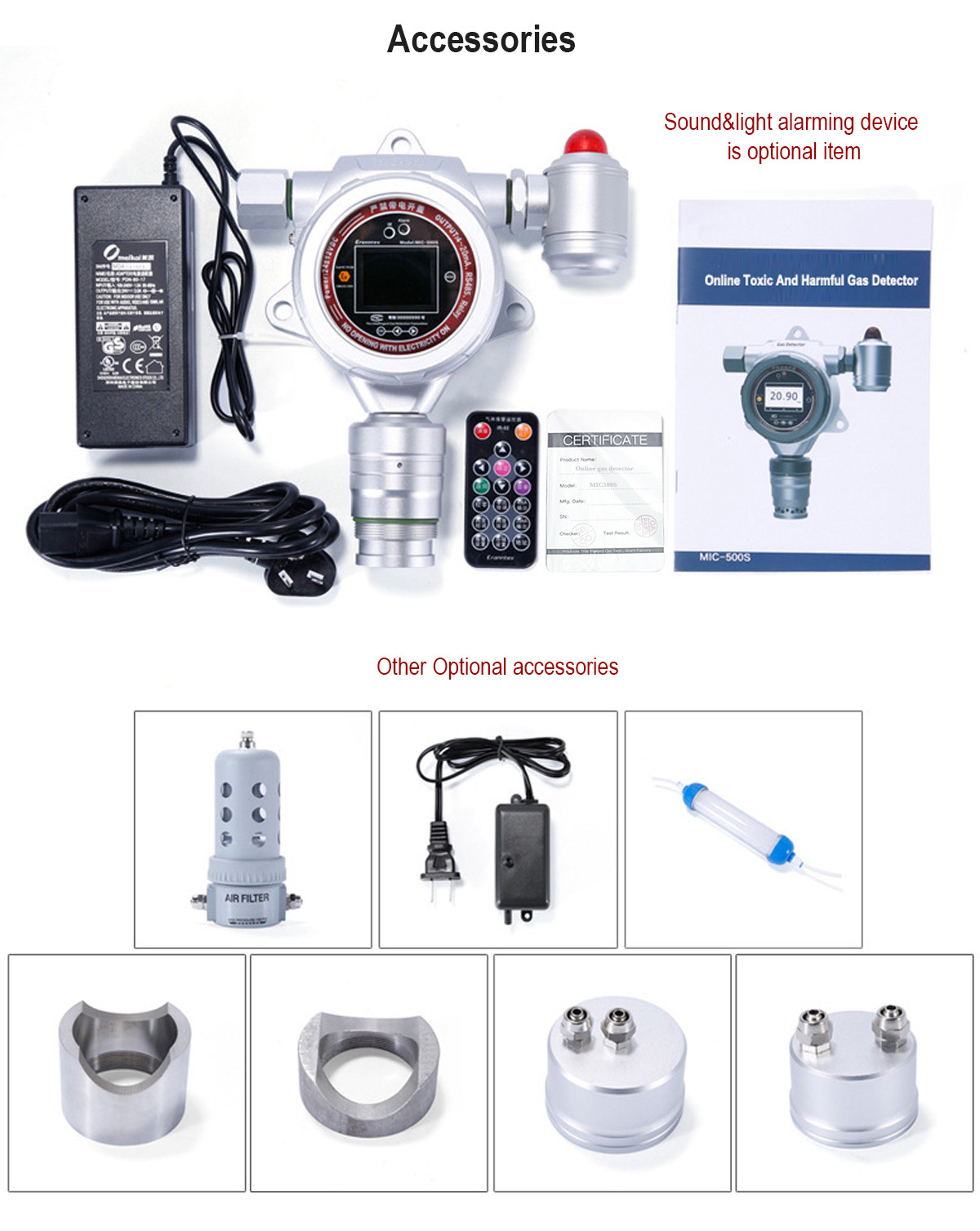

Accessories
Manual, qualification certificate, warranty card, outer packaging
box
Working Voltage
12 ~ 30VDC direct current, the standard power supply for a single
equipment is 24V, DC stabilized voltage switching power supply of
1A or greater than 1A
Working Method
Fixed type installation, online detection, diffusion type
measurement; and it is possible to select the measurement of
pipeline type, flow-through type, and pump-suction type.
Connecting Cable
Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for
RS485, when the distance exceeded 100 meters, the single wire
diameter ≥1.5mm; and the shielding layer will be connected to the
earth.
Optional items
Alarms;Wireless Transmission;Pretreatment System; SD Card;Temperature and Humidity Measurement;Accessory for connection with computer for monitoring.
Installation Type Accessories(Optional configuration)
Wall mounting bracket, mounting clips for fixation on the pipes
(1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on
the pipeline (it is necessary to mark the flange or pipe size, such
as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10
m),vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters

FEATURES

1.multi-directional and three-dimensional indication alarm states.
Alarm types include: concentration alarm, and failure alarm.
Multiple alarm mode settings: low alarm, high alarm, interval
alarm, and weighted average alarm.
2. Zero-point automatic tracking; long-term use will not be
affected by the zero drift.
3. Multi-level calibration for target points, can ensure the
linearity and accuracy of the measurements.
4. Log recording Record the calibration logs, repair logs, failure
history, failure countermeasure solutions,
sensor service life due reminder, and function of reminder for the
time of next concentration calibration.
5. Data recovery function; in case of mis-operation, it is possible
to select partial or full recovery.
6. Mis-operation recognition function: automatic recognition and
prevention of the concentration calibration mis-operation,
which is possible to avoid the poor performance that may be caused
by human factors.
APPLICATION
All the cases which requires the fixed installation, and online
detection of gas concentrations such as petroleum, chemical,
pharmaceutical, environmental protection, combustion gas
distribution, warehousing, smoke gas analysis, air governance, and
so on.
