    Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed

    Ask Lasest Price
    Brand Name : Zetron
    Model Number : MIC-100
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Online Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed

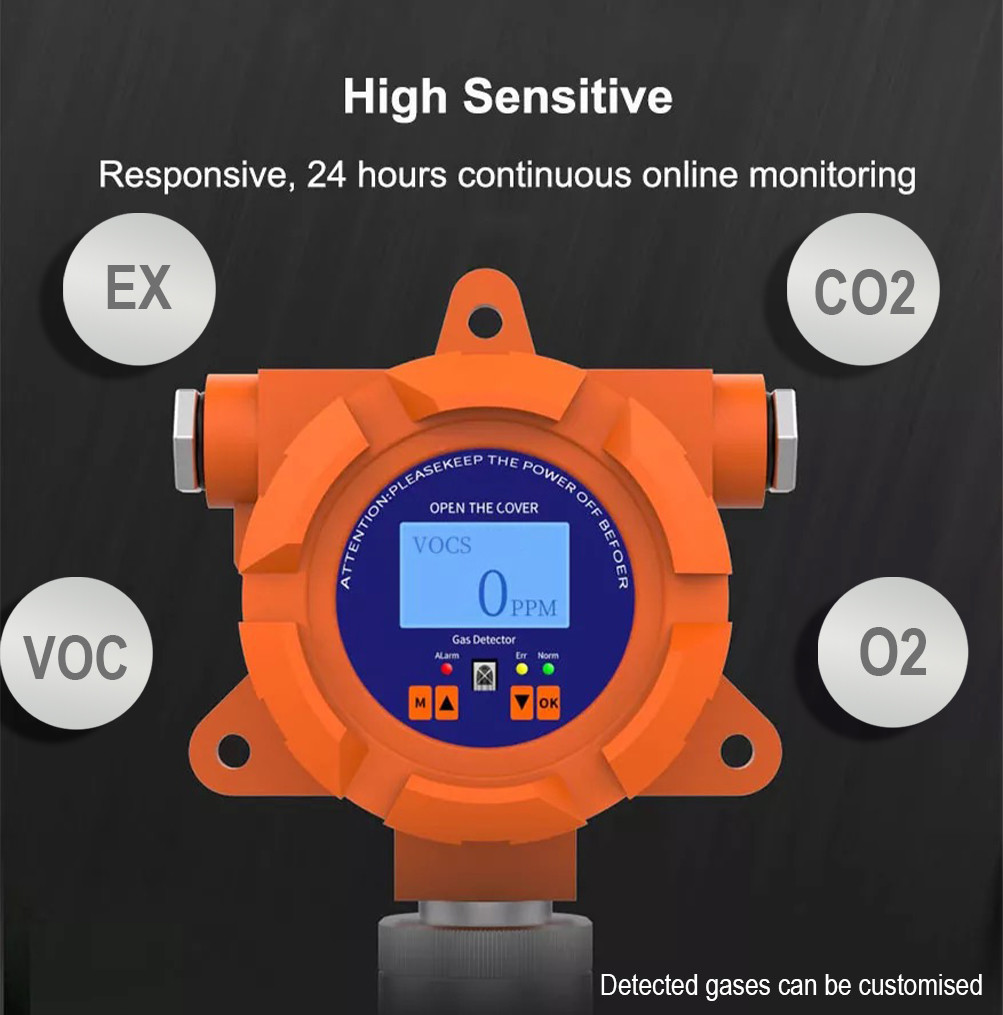

    MIC100 Series
    Online Toxic and Harmful Gas Detector


    OVERVIEW


    MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the field. The types for detection are more than 500 types.
    MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
    Strong, durable, and explosion-proof shell and fluorocarbon surface treatment processes are suitable for use at a variety of hazardous places and corrosive environments.

    Online Gas Monitoring System Co Gas Leak Detector Oem Industrial FixedOnline Gas Monitoring System Co Gas Leak Detector Oem Industrial FixedOnline Gas Monitoring System Co Gas Leak Detector Oem Industrial FixedOnline Gas Monitoring System Co Gas Leak Detector Oem Industrial FixedOnline Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed=Online Gas Monitoring System Co Gas Leak Detector Oem Industrial FixedOnline Gas Monitoring System Co Gas Leak Detector Oem Industrial Fixed


    FEATURES
    • Imported Sensors, Accurate, Fast and Stable
    • 24 hours continuous online monitoring of gas concentration, and the types for detection are more than 500 types.
    • Gas units can be customized: Normally PPM, %Vol, %LEL, other: mg/m3, PPHM, ppb, mg/l.
    • Diversified Data Communication Methods
    • Infrared Remote Control
    SPECIFICATION

    Gas
    Carbon Monoxide
    Sensor
    Electrochemical
    Range
    0-500,1000,2000ppm
    Can be customized
    Resolution
    0.1 ppm; Can be customized
    Smapling Method
    diffusion/pump
    Control Method
    Controller/Infrared remote control
    Allowable error
    ≤±3% FS; Can be customized
    Work Method
    24-hour continuously monitoring
    Response time
    T90≤20 seconds;Can be customized
    Recovery time
    ≤10 seconds; Can be customized
    Working Temp
    -20 ℃ ~ + 70 ℃;(Standard Values)
    -40 ℃ ~ + 80 ℃;(Limit Value)
    Humidity
    10 ~ 95% RH
    Voltage
    ≤2.5 W(DC24V)
    Power
    12~30VDC
    Protection level
    IP65
    Explosion-proof
    Exd Ⅱ CT6
    Alarm
    Audible;Light(option)
    Display
    LCD/without LCD Display
    Cable
    PVVP3 * 1.0mm 2
    Transmission Distance
    ≤1000m
    Installation
    Wall-mounted;Ceiling-mounted;Vertical pipe-mounted; Horizontal pipe-mounted
    Output
    ① Three-wire system 4 ~ 20mA standard signal, and it is possible to work with controller module, PLC, DCS system.
    ② Standard bus RS485 (mod bus-RTU) simultaneous output, and it is possible to view the stored data on the computer via RS232 card.
    ③ Two set of relay switch measures ports ( upper and lower limits) output:dry contact, capacity 30V 1A, 125VAC 0.5A.
    ④ Voltage Signal Output: can set 0-5v, 0-10v signal output (optional).
    ⑤ Other Output: Frequency, Hart, Wireless, GPRS, NB etc.
    Size(mm)
    180*140*92
    Weight(Kg)
    1.6
    Kit
    Manual, qualification certificate, warranty card, outer packaging box
    APPLICATION

    All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
