    PTM100 Desktop Dust Particulate Detector PM1.0 PM2.5 PM5 PM10 Environmental Monitor

    PTM100 Microcomputer Laser Dust Meter

    OVERVIEW

    PTM100 dust detector is Highly effective for monitoring air quality, the Dust Meter measures TSP, PM10, PM5, PM2.5 and PM1 simultaneously in real-time. The instrument is mainly composed of control circuit board, optical monitor, air pump, and communication module. The principle is to measure the dust concentration by laser scattering method, and realize the fixed-point monitoring and communication transmission of measurement data.

    Air samples are continuously drawn through the nephelometer, which analyses individual particles as they pass through a laser beam. The nephelometer’s microprocessor has the capacity to analyze individual particles even if there are millions of particles per liter.
    SPECIFICATION

    Project
    Performance Index
    Accuracy
    0.001mg/m³
    Indication error
    ±20%

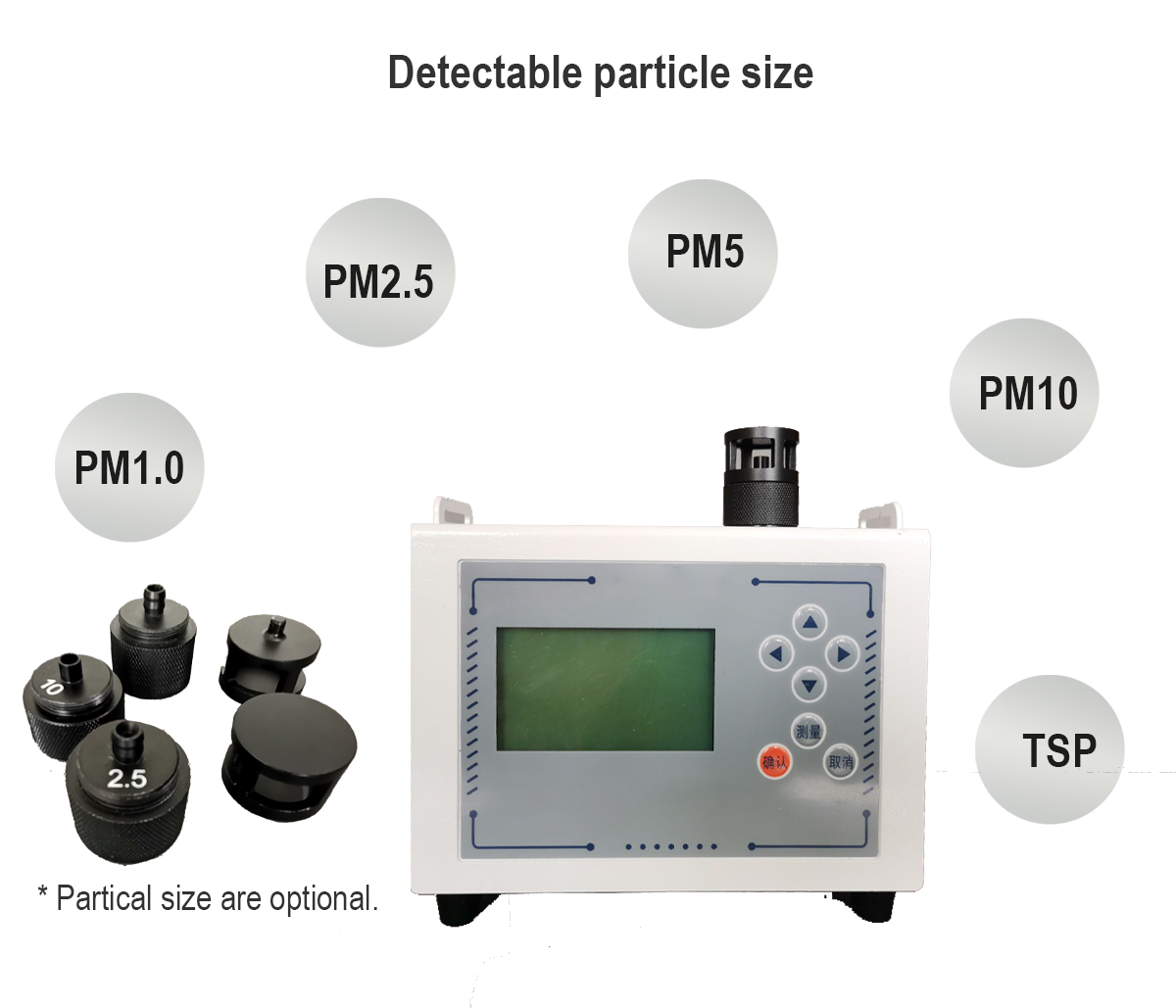

    Detectable particle size
    PM1.0,PM2.5,PM5,PM10,TSP
    Flow
    2L/min
    Sampling mode
    Pump suction
    Interface display
    LCD
    Power
    12VDC power adapter, rechargeable battery pack(optional)
    Storage humidity
    ≤85% RH
    Dimensions Main body length width height
    180 * 94 * 181mm
    Weight
    2kg
    Alarm output
    Sound alarm, switch output alarm (optional)
    APPLICATION


    The detector is widely used in petroleum, environmental protection, metallurgy, refining, biochemical medicine, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
