Item	Description
Product name	TH100 - 16 Channel Gas Alarm Controller
Display	8 inch TFT LCD touch screen
Power supply	AC220V±15%, 50Hz±1%
Consumption	≤10W(according to different channels)
Output voltage	DC24V±15%
Input signal	RS-485/ 4-20mA
Relay output	8 relay output with optional NO or NC / customized
Relay contact capacity	5A, 30VDC or 5A, 220VAC
Alarm mode	Audible, visual
Installation mode	Wall-mounted
Suitable gas detector	MIC100 Fixed gas detector with RS485 signal output
Gas detector quantity	≤64pc
Communication distance	≤2000m
Working temperature	-10℃~+50℃
Working humidity	10~95%RH(Non-condensation)
Size	400mm*280mm*80mm
Weight	About 3.6kg
Protection grade	IP54
Quality standard	GB 16808-2008 GB 15326-1994
Certificate	CE, RoHS

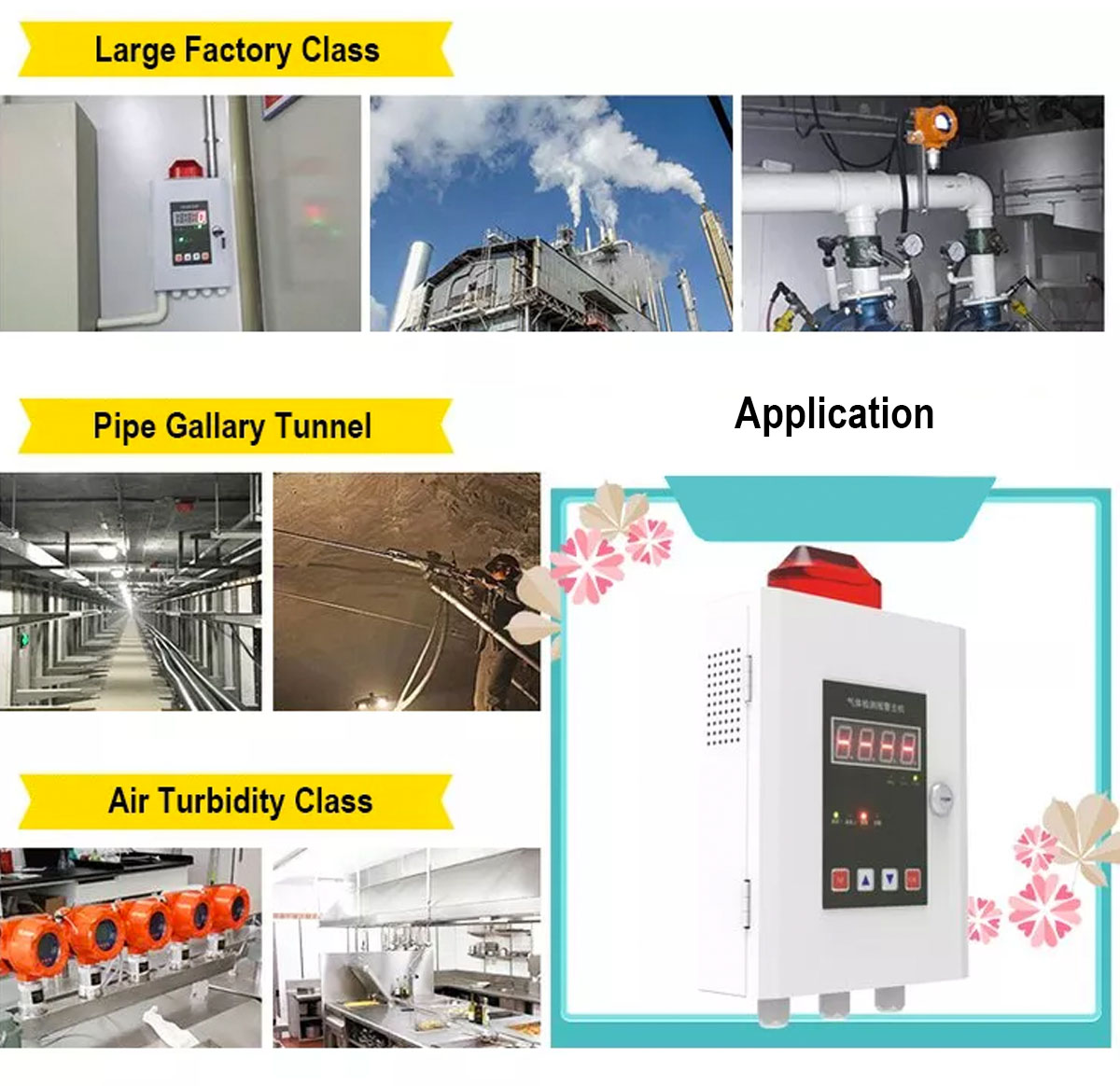

The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.

Zetron Technology is a professional company committed to developing the gas detection industry. It has more than 18-year experience specializing in the research, development, manufacture, and sale of gas detectors.

With its strong technical force and economic strength, the company is constantly developing new products at the international advanced technology level.

We are ready for supplying professional and exact technical services and designing projects to meet local customers' needs. The independent technology from sensors to detectors enables us to afford a one-stop gas detection solution service worldwide.

We always concentrate on enhancing customer communication, developing international cooperation, and participating in international competitions by attending many professional exhibitions worldwide every year.

Our products can be divided into High-end Laser Methane Detectors， Domestic Gas Alarms, Portable Gas Detectors, Industrial Fixed Systems, Gas analyzers, as well as gas sensors, and vital elements for gas detection. The products have obtained certificates of CE, TUV, ATEX, and RoHS, and are widely used in industrial fields.

Around the IoT industry, we will combine sensors, intelligent terminals, communication technology, cloud computing, and geographic information IOT technology closely, establishing a complete IoT industry chain.

We are focused on customer value-oriented, combining treatment of environmental protection with energy-saving technology, providing perfect solutions for smart city, production safety, environmental protection, and the health of the people's livelihood. Creating value for customers is our forever pursuit.
