    Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames

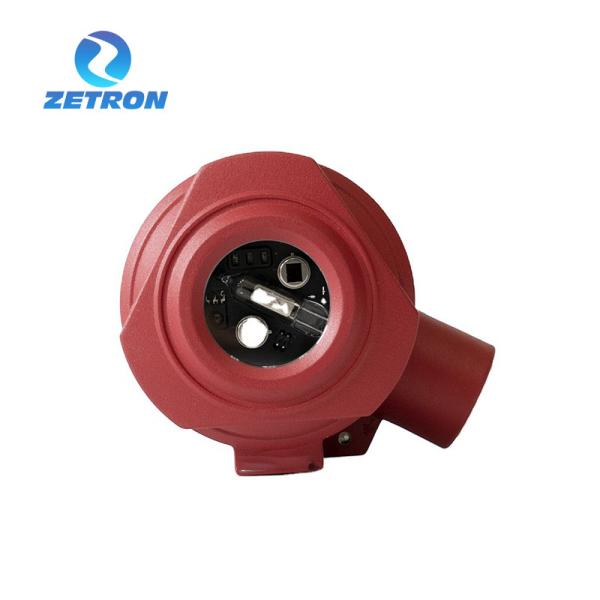

    MIC200-FD707EX Ultraviolet&Infrared Flame Detector

    OVERVIEW
    The detector MIC200-FD707EX combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most environment places (Refinery, Loading Rack and Aerosol Fill etc). The UVIR2 flame detector uses a new narrow-band current infrared pyroelectric sensor and the R2868 "sunlight blind" ultraviolet photoelectric sensor from Hamamatsu Photonics Co., Ltd., with a built-in 32-bit microprocessor and patented composite signal processing algorithm. KF715/UVIR2 flame detectors are smaller in size, lighter in weight, and easier to install.


    SPECIFICATION

    Model
    MIC200-FD707EX
    Spectrum Range
    UV 185-260nm IR 4.3-5.0μm
    Detection angle
    120° 40m
    Sensitivity level
    Grade I
    Main Voltage
    24VDC(18~30VDC)
    Ex-Atex Protection Level
    Exd II C T6 Gb/tD A21 IP66 T80°C
    Protection class
    IP66 / IP67
    Operation method
    Infrared remote control
    Temperature range
    -40℃~70℃
    Environmental Storage temperature range
    (-40~-158°F)
    Humidity:
    0 ~ 96%RH (non-condensing) can withstand
    100% condensing humidity for a short time
    Materials and colors
    Cast Aluminum,The coating is an insulating layer,corrosion-resistant, Red
    Electrical Interface
    1×3/4NPT,M25*1.5,G3/4, optional
    Size
    120mm* 95mm* 85mm
    Weight about
    0.7kg

    APPLICATION


    The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.
