6 In 1 Multi Co H2s Gas Detector Fixed With Color Display Atex Certified

MIC600 6 in 1 Fixed Gas Monitor

OVERVIEW

The optional high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at a temperature of1300℃. The detection of the gases at other temperatures can be customized. Simultaneously display the concentrations of multiple types of gases, repeatedly display the concentration of single-channel gases in large font, and display the real-time curve.

Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration,
real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is
supported to use the localhost to view, and delete data, and upload the data via RS485 interface to the computer for data
analysis or printing.

2.5-inch high-definition color screen, display information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.

SPECIFICATION

Gas	VOCs	Range	0-50000PPM; 0-100%LEL ; 0-100%Vol. other ranges can be customized
Size	210×170×85mm (L×H×W)	Weight	1.8 Kg
Installation method	Pipeline Type Wall Mounting Type	Display	2.5-inch high-definition color screen
Optional items	Alarms; Wireless Transmission; Pretreatment System; SD Card; Temperature and Humidity Measurement; Accessory for connection with a computer for monitoring.
Installation Type Accessories (Optional configuration)	Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m), 24V switching power supply, pressure reducing valve, flow meters

MIC600 Online VOC Fixed Gas Detector Industrial Leak Detection Pid Sensor 0

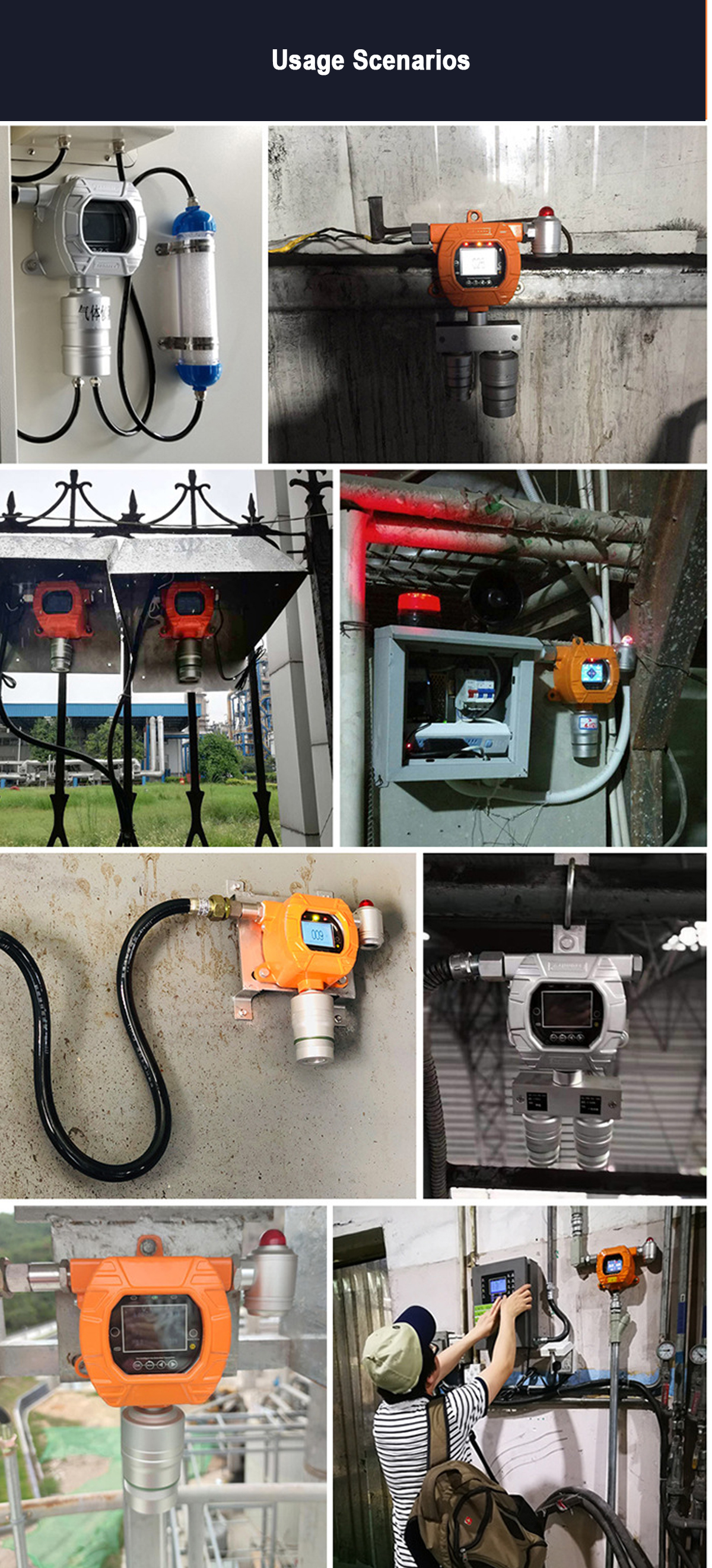

APPLICATION

All the cases which require the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline, Waste Water Treatment Plants, Acetylene Gas Bottlers & Users, Ice Skating & Hockey Arenas and so on.
