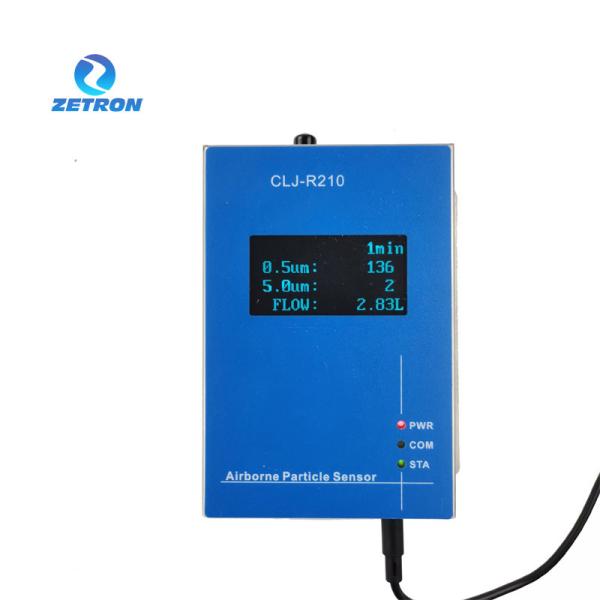

R Series
Remote Airborne Particle Counter
OVERVIEW
R Series Remote particle counter is used to install one or more
monitoring points according to the actual situation on-site, and
the measured data will be directly displayed on the display screen
of each monitoring point.
R Series particle counter has three indicators: power indicator,
communication indicator, measurement status indicator
If an abnormality occurs during real-time monitoring, the
monitoring points can be quickly notified, which makes remote
monitoring or monitoring in the process restricted area more
convenient.
FEATURES & BENEFITS
1.Particle size channels: 0.3um-25um (optional)
2.Sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) (optional)
3. Three indicators: power indicator, communication indicator,
measurement status indicator
4.RS485 (Modbus), 4-20mA, WIFI, LORA, TCPIP, and other signal
output options
5. Long-life service with imported laser diodes and vacuum pumps
6. Displayed intuitive and clear with 2.4 inch OLED
7. 316 stainless steel casing can be customized
SPECIFICATION
Model | R200 (2.83L/min) R300 (28.3L/min) | R210 (2.83L/min) R310 (28.3L/min) | |
Channel sizes | Two Channels: 0.5μm,5.0μm
Three Channels: 0.3μm,0.5μm,5.0μm
Four Channels: 0.3μm,0.5μm,1.0μm,5.0μm
Six Channels: 0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable) |
Display | | Customizable 2.4 inch OLED | |
Output | | RS485(modbus) or TCPIP(modbus) (TCPIP has no extended output) |
RS485(modbus)
Extended Output | | 4-20mA(2 channels); 0-5V(2channels) Relay(2channels); WiFi; LORA |
Power Supply | | 12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus)) |
Pump | | Built-in pump(R210) External pump(R310) | |
Weight & Size | | | |
APPLICATION
Particle Counters are feature-rich instruments that are ideal for
spot-checking inside of your critical environments or Indoor Air
Quality applications. With its compact size, weight, and sleek
handle, you can easily utilize this unit.
These units provide immediate results that allow you to proactively
monitor your environment.
It's widely used in Automotive Manufacturing; Coating Processes;
Paint Booth; Aerospace Flight and Space; Hardware Manufacturing;
Flat Panel Display Manufacturing; Medical Device Manufacturing
Electronic Industry (semiconductor factory, precision machinery
production and processing, etc); Food Hygiene Industry (dairy
products, plastic meat food, seasoning food, agricultural products,
etc); Filter Manufacturers, inspection filter quality and
efficiency, etc; and other areas of precision processing, precision
testing required Clean Room (area), and other testing needs.
