    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor

    Ask Lasest Price
    Brand Name : Zetron
    Model Number : MIC500
    Certification : CE
    Price : USD 240/set - 2000/set
    Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C
    Supply Ability : 1000 SET / week
    Delivery Time : 1-10 work days
    • Product Details
    • Company Profile

    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor

    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer with Remote Sensor


    OVERVIEW

    Using electrochemistry, the detection accuracy reaches ±3%FS, and it can measure the residual concentration of PH₃, meeting the needs of trace leakage monitoring in scenarios such as grain warehouse fumigation and chemical production. Real-time monitoring of the residual concentration of PH₃ during fumigation operations, split design to protect the safety of workers. Rapid screening of residual gas in the warehouse after fumigation, linkage exhaust system to accelerate purification, ensure environmental safety.


    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor

    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor

    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor


    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor


    MIC500S Fixed Fumigatio Gas PH3 Residual Gas Analyzer With Remote Sensor

    SPECIFICATION


    GasToxic& Harmful Gas more than 500 typesRange0-50000PPM;
    0-100%LEL ;
    0-100%Vol.
    other ranges can be customized
    Size210×170×85mm (L×H×W)Weight1.8 Kg
    Installation methodPipeline Type
    Wall Mounting Type
    Display1.7-inch high-definition color screen
    EnvironmentTemperature: -40 ℃ ~ + 70 ℃
    Humidity: ≤10 ~ 95% RH (regular)
    ApprovalsIP65; Exd Ⅱ CT6
    AccessoriesManual, qualification certificate, warranty card, outer packaging box
    Working Voltage12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A
    Working MethodFixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type.
    Connecting CableAdopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth.
    Optional itemsAlarms; Wireless Transmission; Pretreatment System; SD Card;
    Temperature and Humidity Measurement;
    Accessory for connection with computer for monitoring.
    Installation Type Accessories
    (Optional configuration)
    Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
    stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
    rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m),
    vacuum pump (sampling distance is 40 m),
    24V switching power supply, pressure reducing valve, flow meters

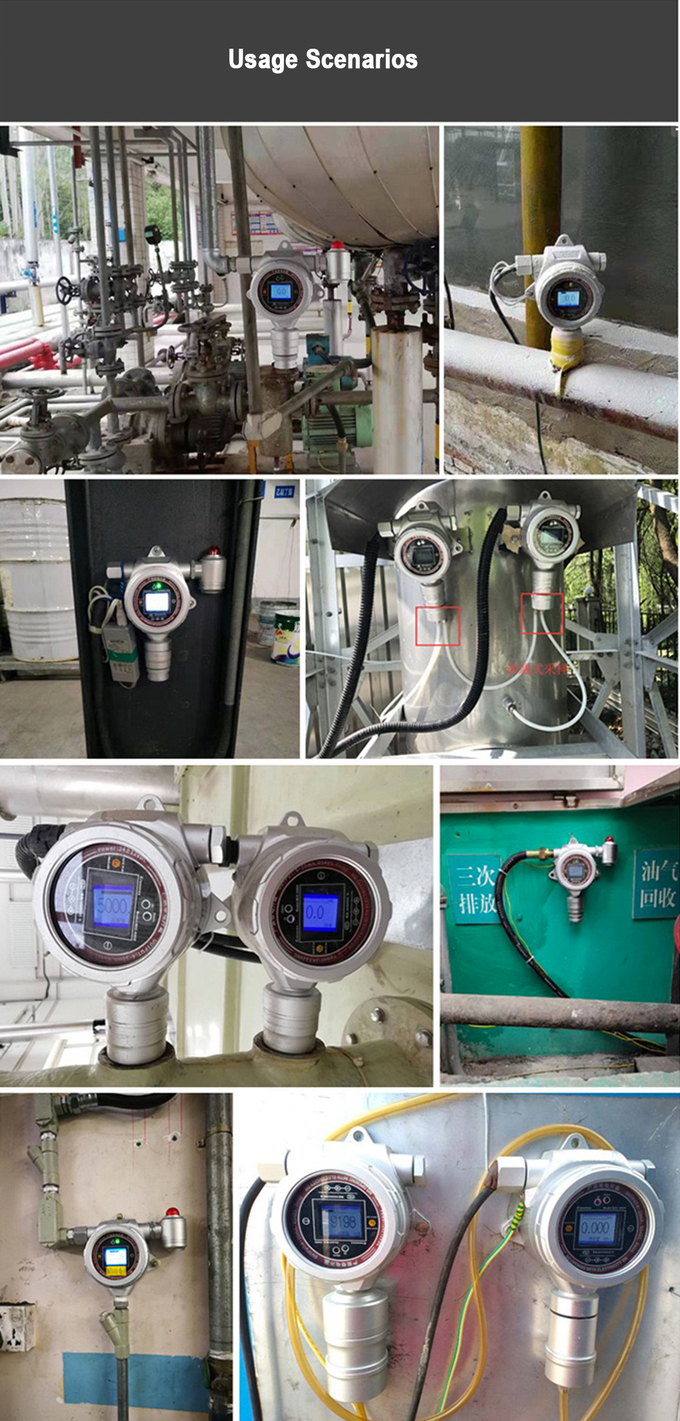

    APPLICATION
